DEPARTMENT OF THE INTERIOR – NATIONAL PARK SERVICE
HITW FIRE MANAGEMENT CENTER
Mojave National Preserve, California.
| START DATE: November 5, 2001 CONTRACT COMPLETION DATE: July 6, 2002 SCOPE OF WORK: Construction of a new one-story wood-framed 3,769 square foot Dormitory and one (1) 6,224 square foot Engine Barn, metal roof, EIFS, HVAC system, electrical, plumbing, security system, fire sprinklers and site work. Special Construction – Photovoltaic System, Solar Radiant Floor Heating System. |
11-13-01

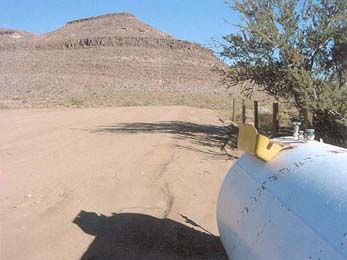

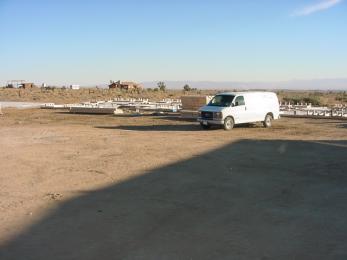

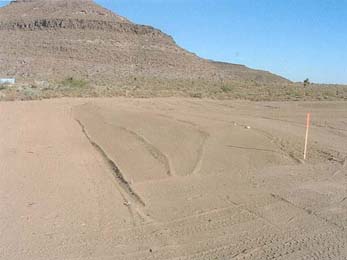

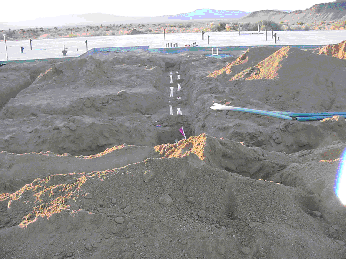

Pad Grade - East View

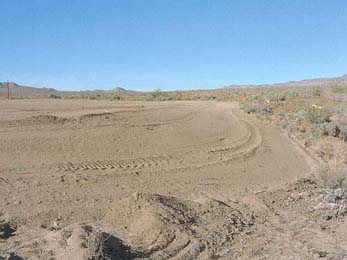

Pad Grade - North View At Barn
Pad Grade - North View At Dorm Pad Grade
- East View At Dorm
Pad Grade At Entrance I

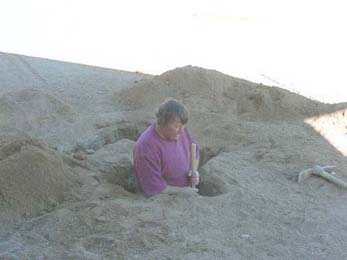

Know It Is Here.....

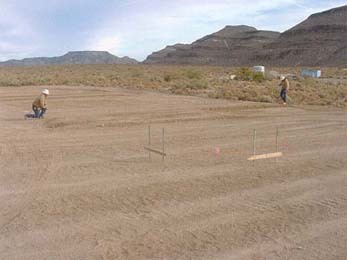

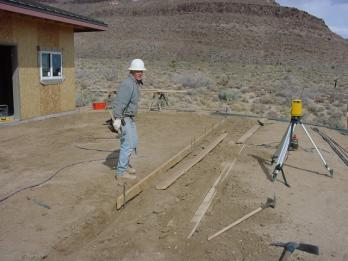

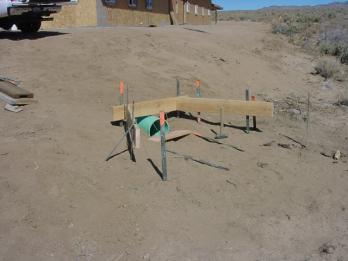

Setting Batter Boards More

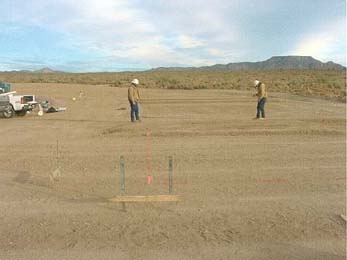

Batter Boards at Engine Barn

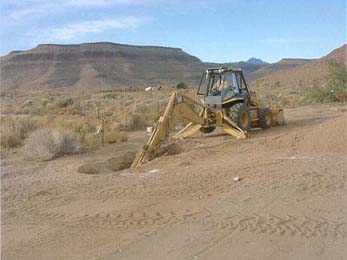

Trenching for Septic Tank Septic

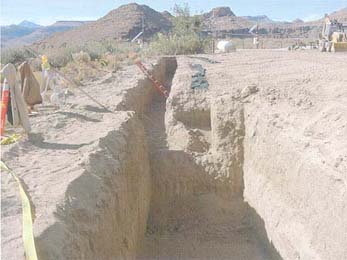

Tank Pit And One Leach Line

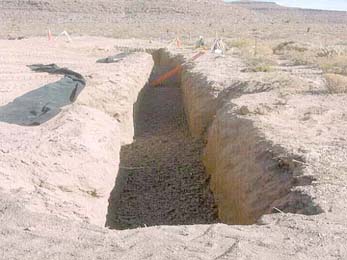

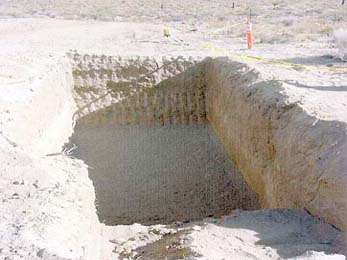

Leach Line With Geotextile Septic
Tank Pit Ready For Tank
11-26-01

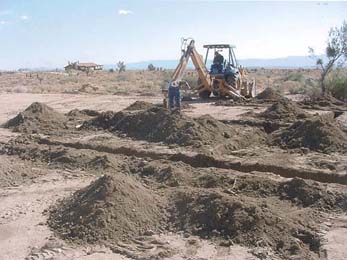

Howard Meyer - Trenching Footings Mike
D. - Maurice T. - And Scott L. -

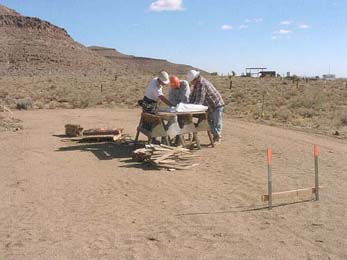

Meeting Over Plans

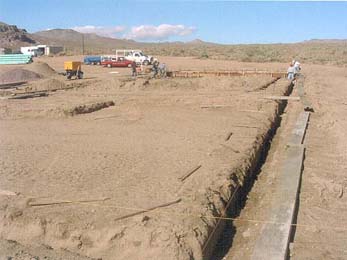

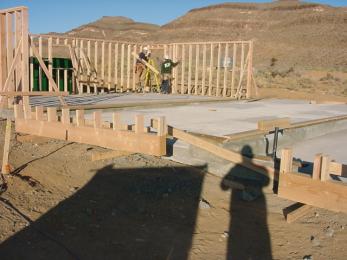

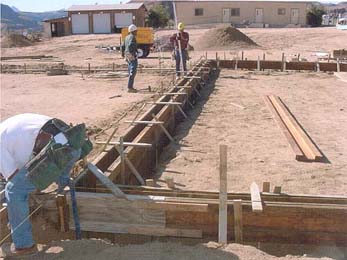

Layout Forms On East Wall - Engine Barn Forms In
Place - Partition Wall Engine Barn

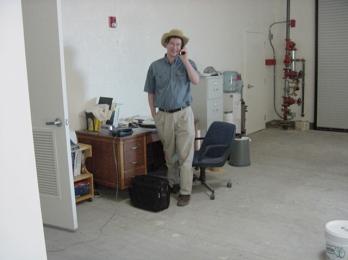

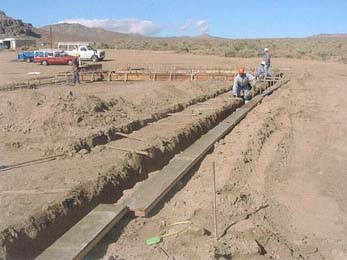

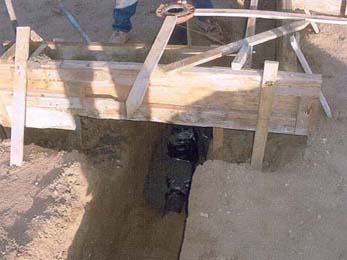

Maurice T. Setting Forms Engine Barn Fire Sprinkler
Riser In Place - Engine Barn

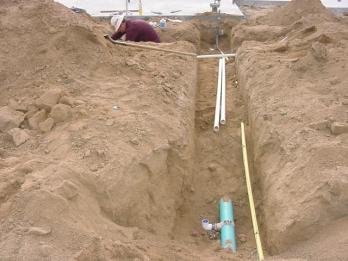

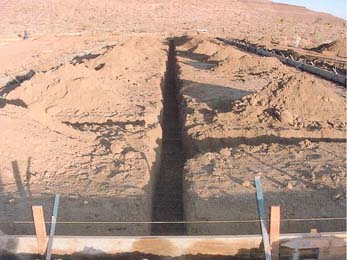

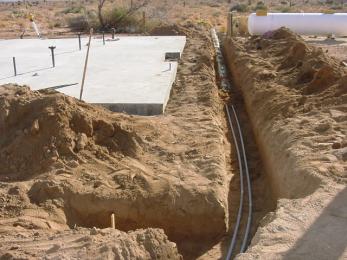

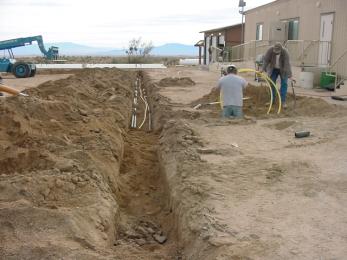

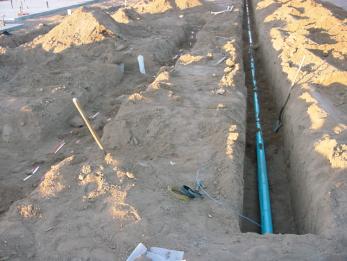

Plumbing Trench - Dormitory - East View 4 Inch ID
Pipe For Fire Sprinkler Riser - Dormitory

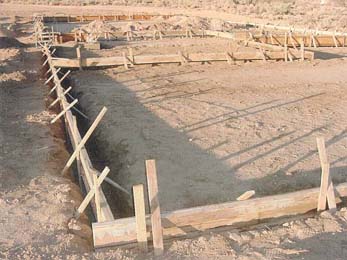

Concrete Forms In Place - Engine Barn

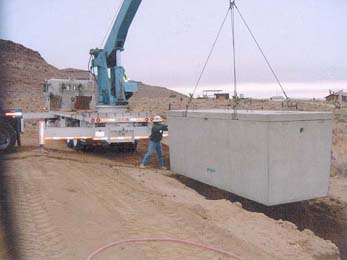

Septic Tank Going Into Place -

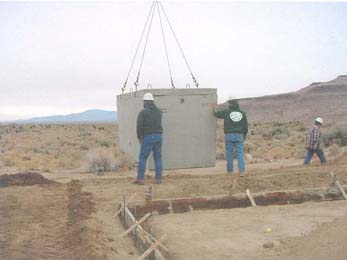

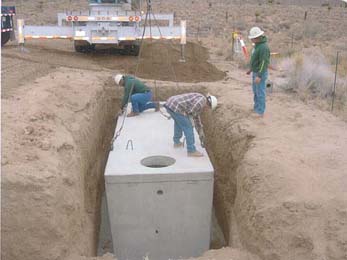

Howard And Cameron Positioning Tank Into Pit - #1
Septic Tank Going Into Place -
Howard And Cameron Positioning Tank Into Pit - #2
11-29-01 and 12-3-01

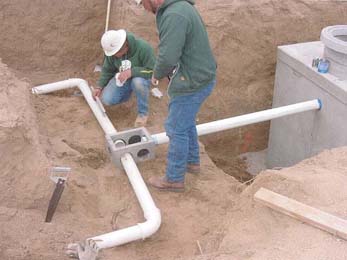

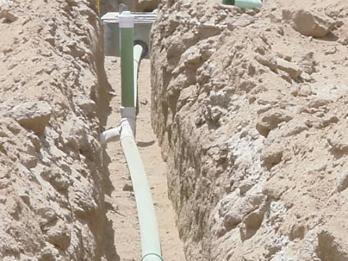

Septic Tank In Place - Distribution
Box Connection To Septic Tank
Mike D. - Howard M., Cameron C.

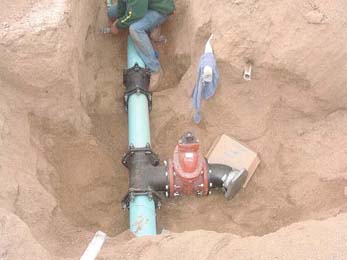

Added 6 Inch Waterline Tie-in To Existing Water System

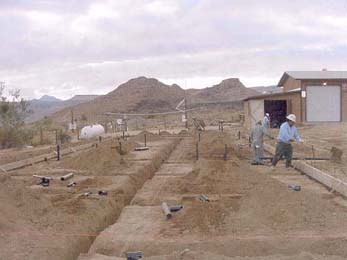

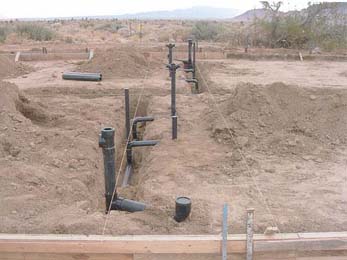

Dormitory Ground Pumping.

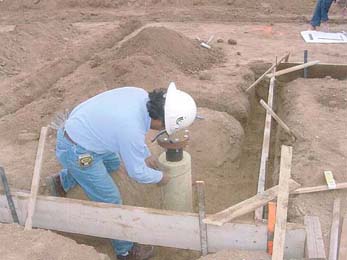

Manny Installing F.S. Riser Collar.
Dormitory Ground Pumping
12-10-01

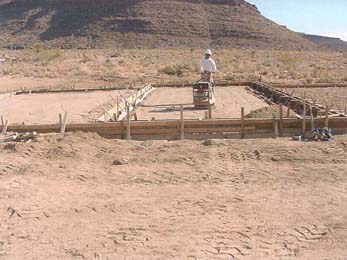

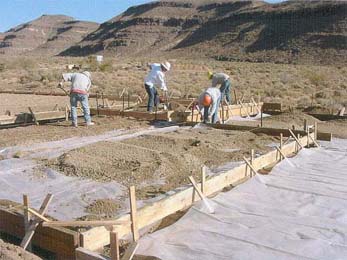

Joe Edwards Compacting Base Base
At Maintenance Room

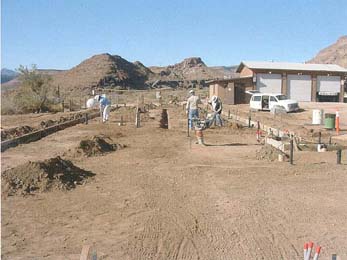

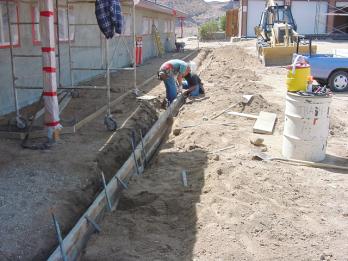

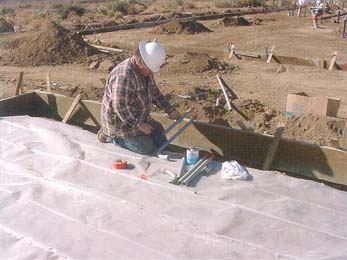

Mike D. Installing Electrical Conduits Backfilling
And Compacting Plumbing Trenches

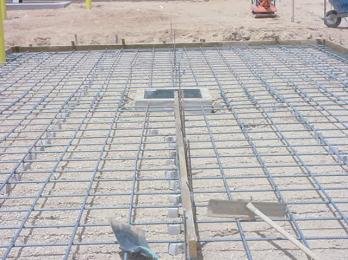

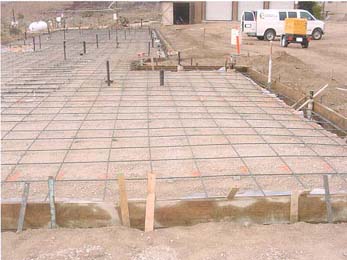

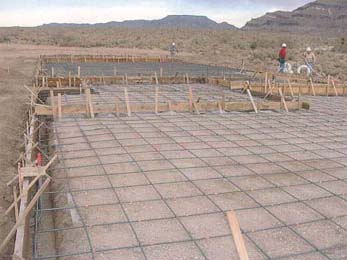

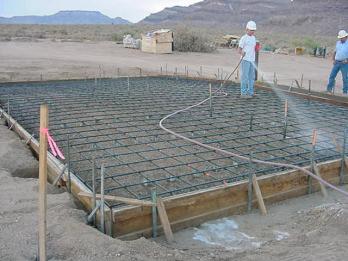

Rebar In Place - Dormitory Rebar
In Place - Engine Barn
12-11-01 and 12-27-01

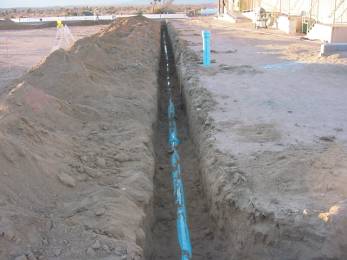

New Water Main, Looking South Marking
Tape, Elect To Dorm
Water Main From Barn, Looking West Telephone
Ducts, Gas Lines, Looking South

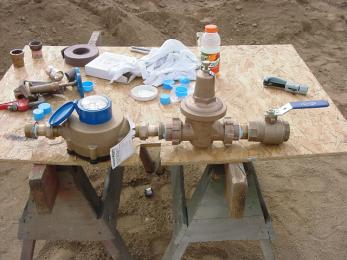

Water Meter Assembly
Water Tap To Dorm
West Side Dorm, 12” Drain, 1” Ducts To Fuel Pad

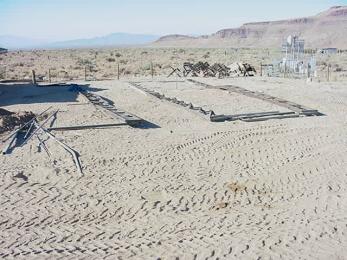

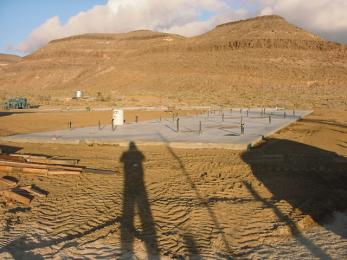

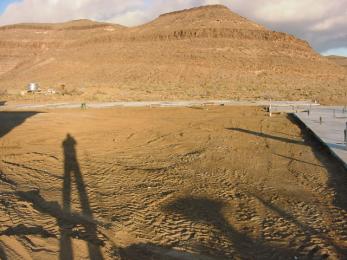

Dorm Pad, Looking North East
Engine Barn Pad, Looking East Dorm
Pad, Looking South East

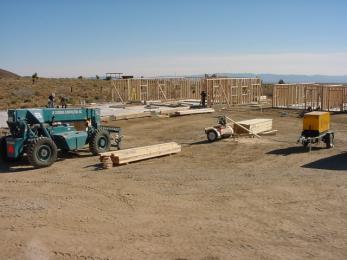

Dorm Framing Layout
Dorm Framing Layout, South Wall

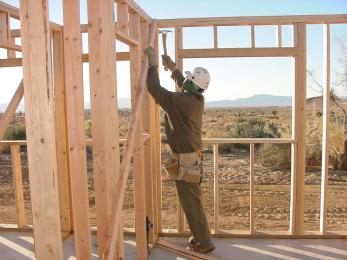

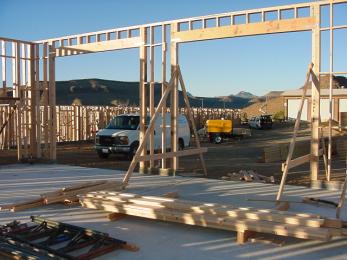

Framed Front Wall, Dorm
Framing Of Offices

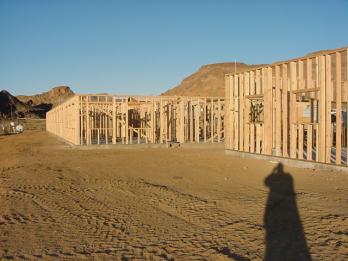

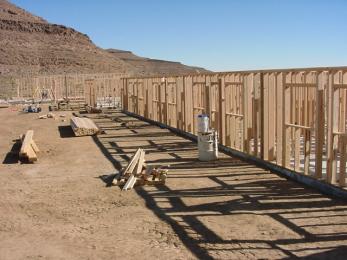

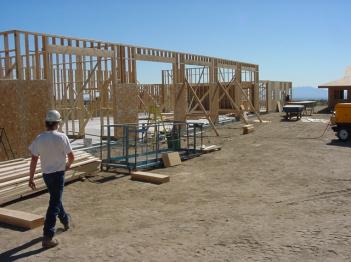

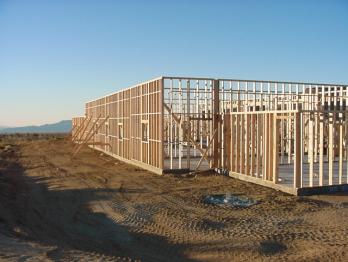

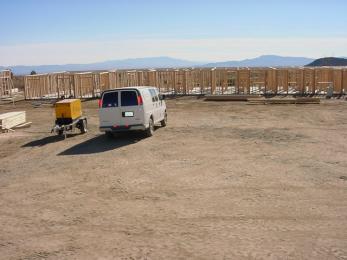

Walls Framed, Dorm
Standing Walls On Cache
Don Harris - Cameron Cardenas

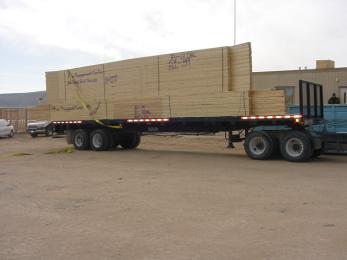

Dorm Trusses, Arrive
Rear Wall, Dorm
Inside Barn, Looking Toward Dorm Barn

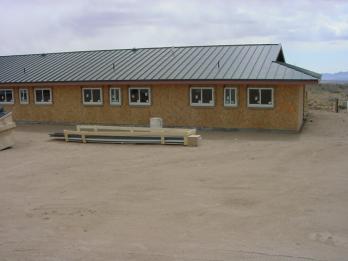

And Dorm Back, Looking South

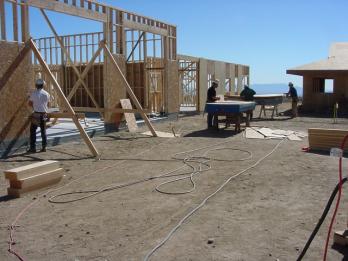

Dave Moore, Making Temp Support

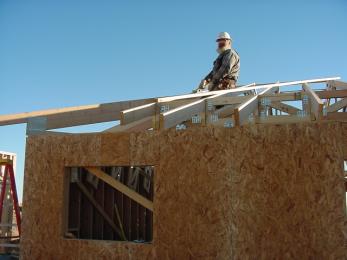

Trusses Stood On Dorm
Don Harris, Assembling Dutch Gable Cameron
Cardenas, Installing A35’s
2-4-02

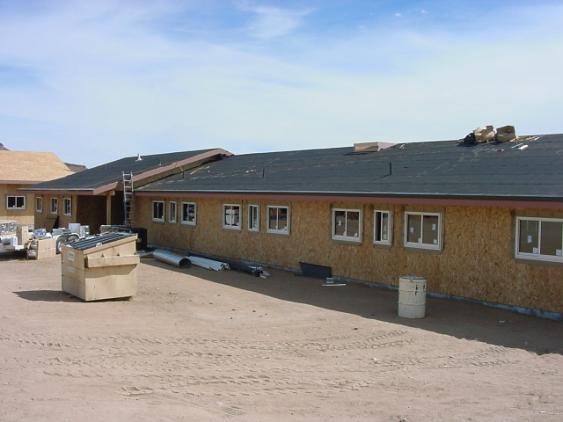

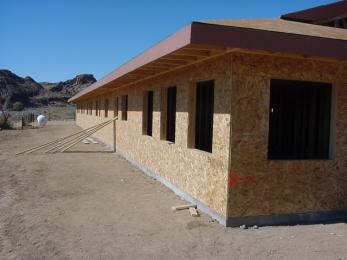

Dorm Sheeting Completed

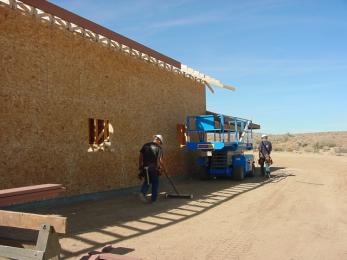

Installing Shear Panels, Barn
Rear Of Dorm, Looking West Cutting
Shear Panels To Install On Barn

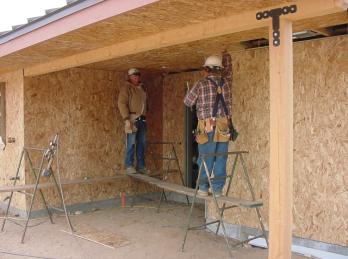

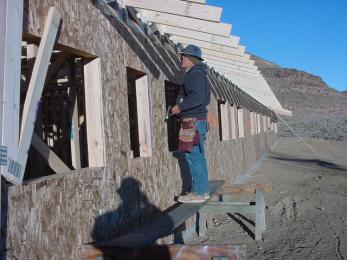

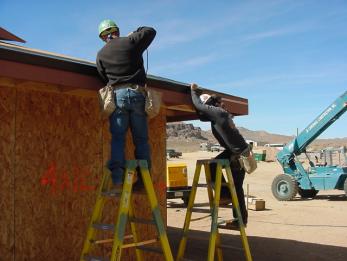

Tickemyer Con, Installing Eave Trim
Installing Fascia, Rear Of Dorm
Dorm Roof Ready TO Install Roof Panels
Installing Fascia Front Of Barn
Dorm Roof Ready To Install Roof Panels
Installing Fascia Front Of Barn

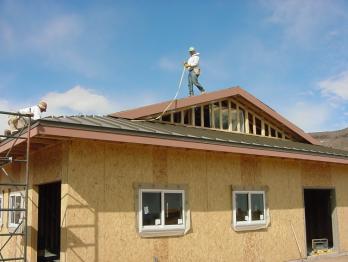

Feb 25, Dorm Roof Dried In Feb
25, Hanging Front Fascia
Don
Harris
Forming South Drain

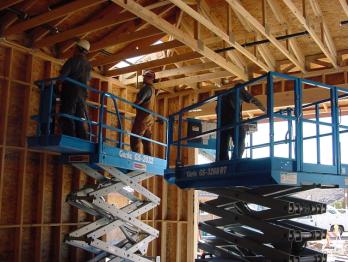

Hanging Sprinkler Mains
Bulk Head
Solatubes In place

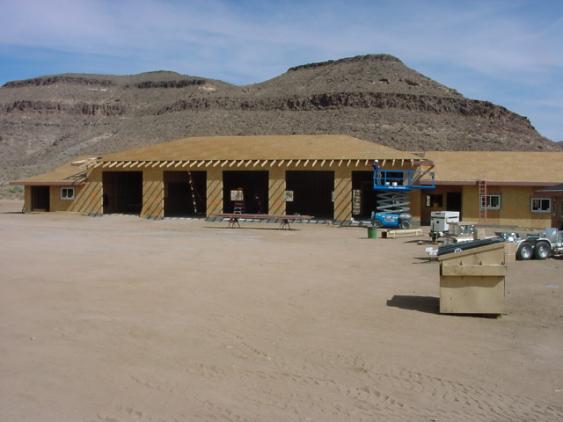

Looking South At Dorm

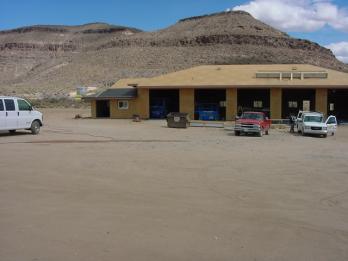

Looking East At Engine Barn Looking
East At Engine Barn

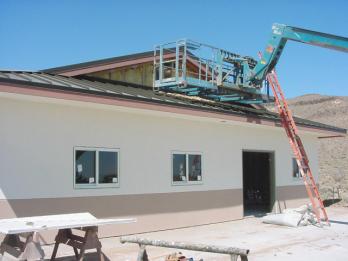

Hanging Substrate for EFIS

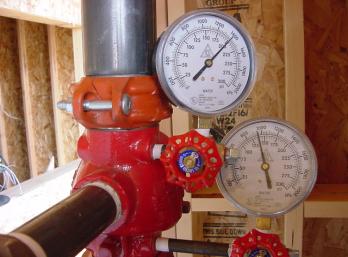

200 PSI Test
Dave Moore, Mike Doherty
Barn Sprinkler

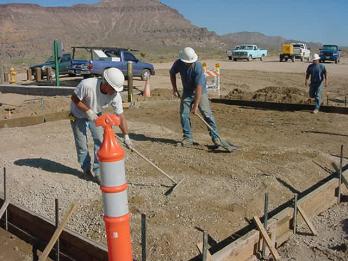

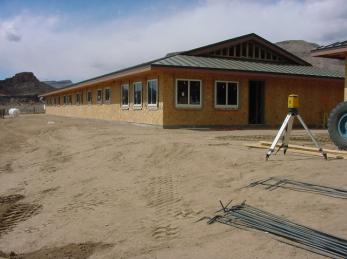

Cameron Cardenas Grading South Patio Looking
West At Back Of Dorm

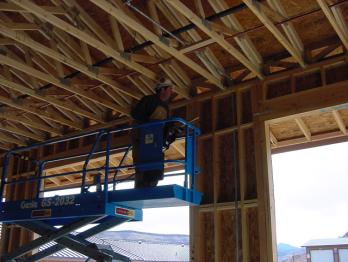

Tracy Covone Installing Air Line In Barn Mike

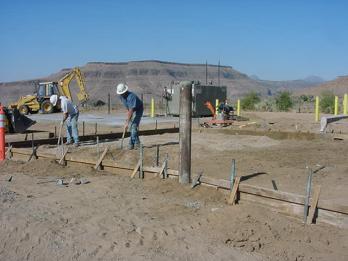

Carter Setting South Patio Forms

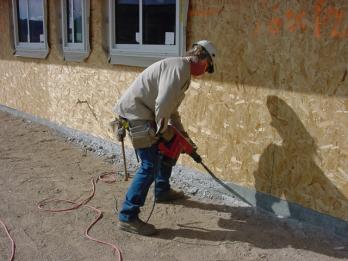

Scott Tickemyer Installing Barn Roof Dave
Moore Chipping Excess Concrete

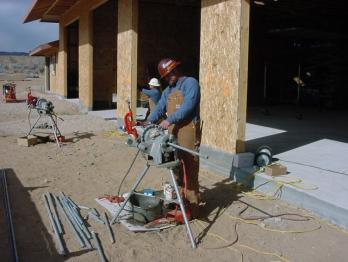

Toby Layton Threading Air Line
3-27-02

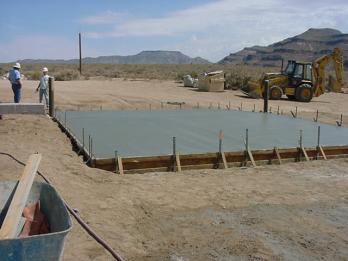

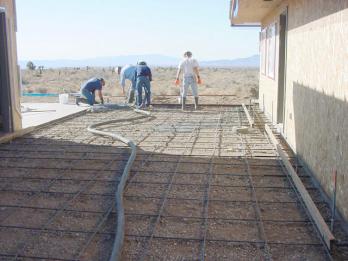

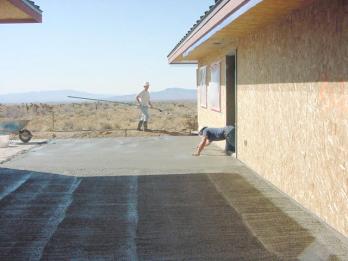

Concrete Pour between Engine Barn & Dorm

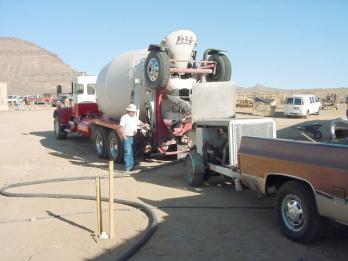

Concrete Pumper & Service Rock
Concrete Finish Work
Engine Barn Concrete Forms On Apron

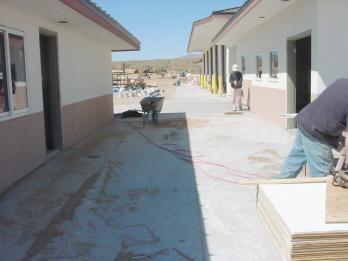

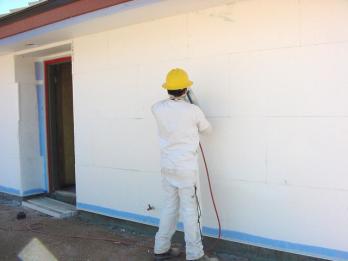

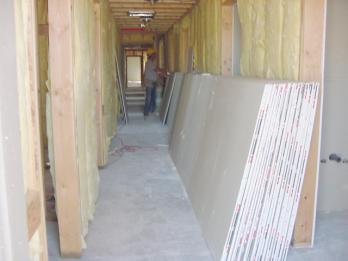

EFIS Planning Application Insulation
and Drywall Dorm

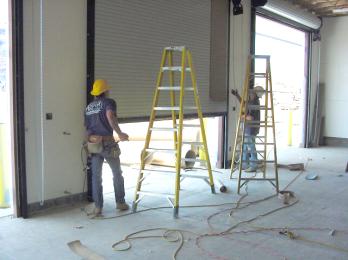

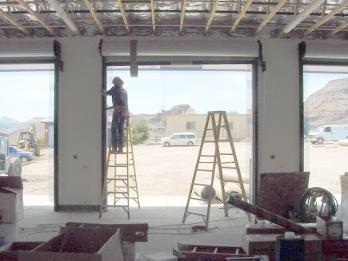

Hanging Rollup Engine Barn Doors Adjusting
Rollup Engine Barn Doors
A-Door Co.
A-Door Co.
Forming Concrete Walkway

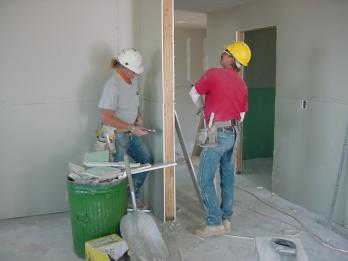

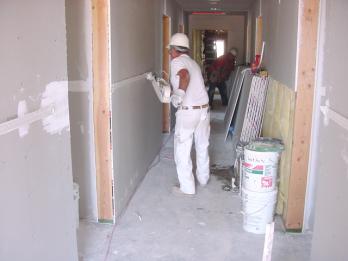

Drywall Finishing
Mike Carter / Cameron Cardenas
Dave Moore / Jay Johnson

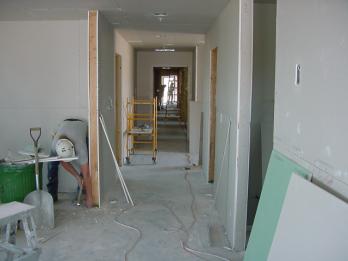

Dorm Drywall Finishing
Dorm Drywall Taping & Finishing
Looking West
John Simons
4-12-02

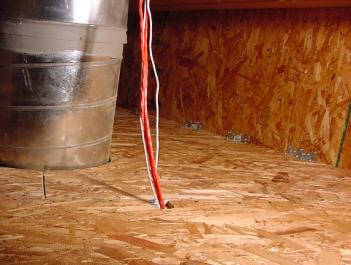

Shear Wall In Attic, Dorm

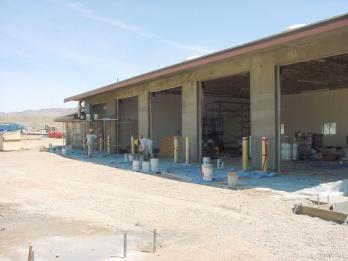

Mike Carter and Cameron Cardenas Finish
Browning Front Of Barn

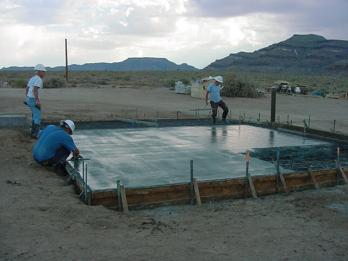

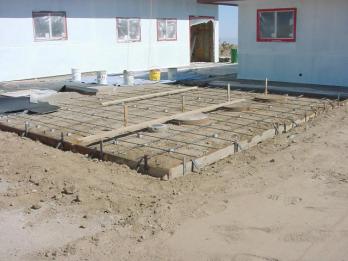

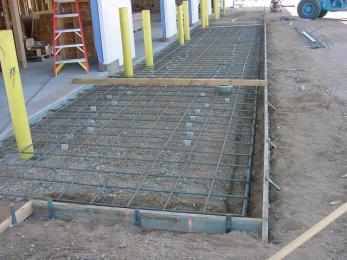

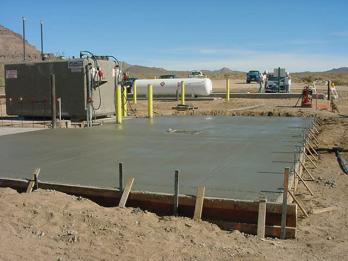

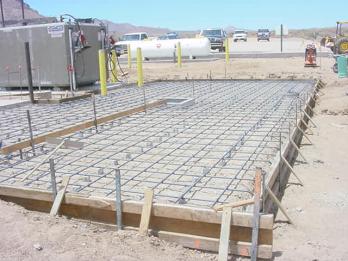

Place Rebar LP Pad
Coloring Barn Patio

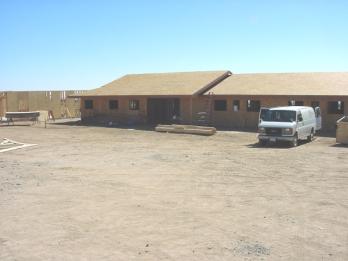

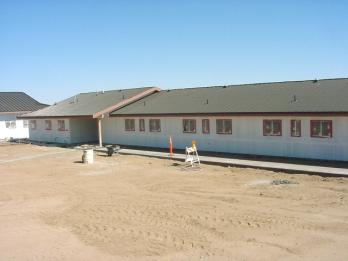

Rear Of Dorm With Prime
4-17-02
Handicap Parking Area, Ready to Pour
West End Of Dorm
East End Of Dorm

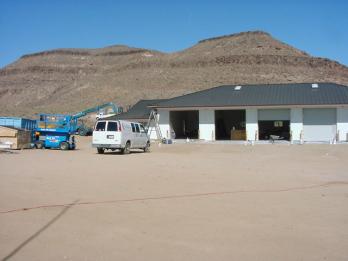

South End Of Barn
North End Of Barn

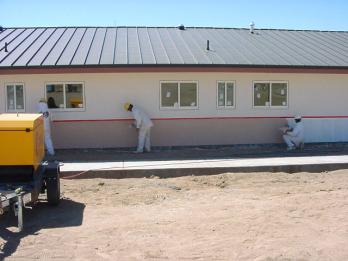

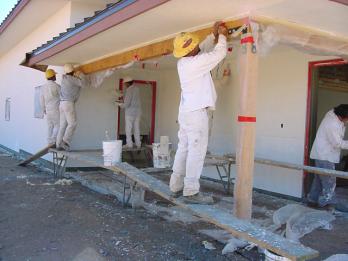

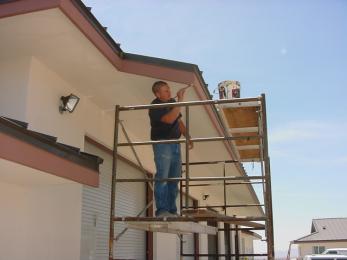

Applying Lower Color On Dorm,
Captain Artisian Plastering
4-18-02
Start To Side, South Dutch Gable On Barn

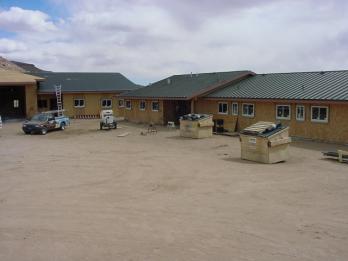

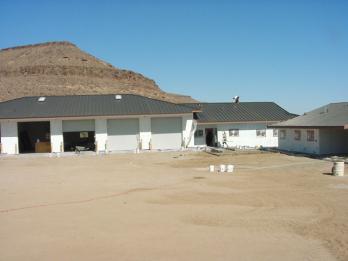

Looking North Between Buildings

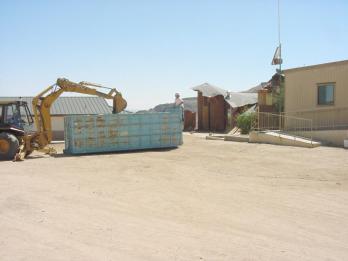

Loading Old Barn In Roll Off
½ Demolition, Old Barn
Mike At Work

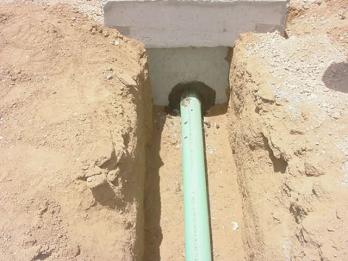

Grouting 12” Pipe In Storm Drain
5-2-02
Remove Backing And

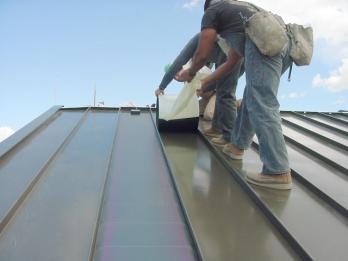

Photovoltaic Solar Panel In Roof Pan

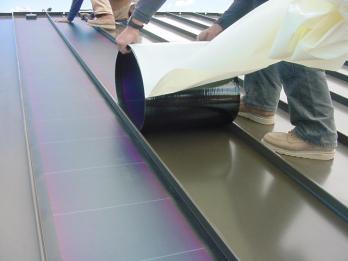

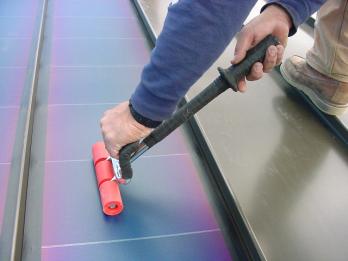

Unrolling Photovoltaic Solar Panel
Complete Photovoltaic Panel Installed

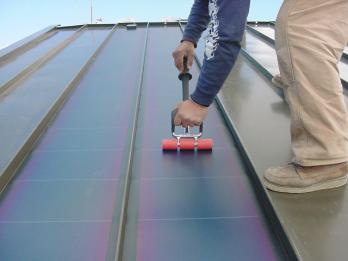

Start In Center Roll Toward Ends
To Remove Trapped Air
Second Roll From Center To Edges

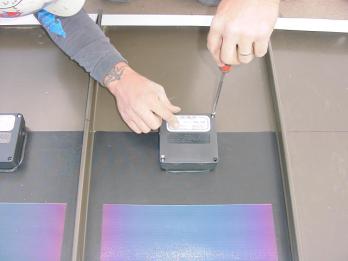

Locate Junction Box & Scribe
Start Of Photovoltaic Solar Panel Install

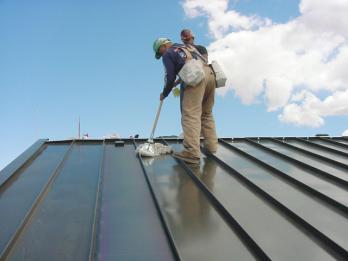

Surface Prep, Pre-dusting Roof Panel

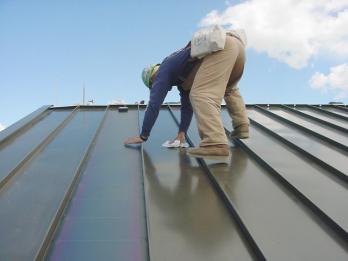

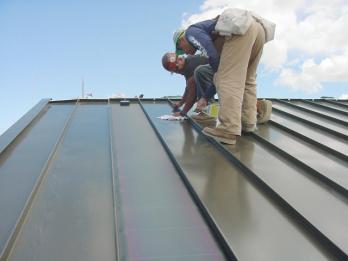

Surface Prep, Wiping With Alcohol Surface
Prep, Wiping With Dry Lint Free Rag

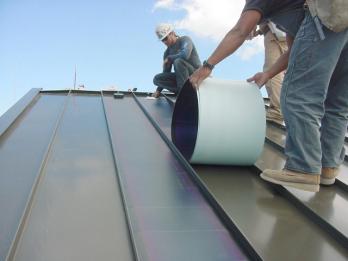

Rolling Out Photovoltaic Solar Panel Photovoltaic

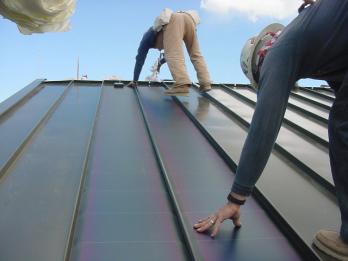

Panel Squared In Roof, Rolled Back
Up
After Top 6” Is Stuck Down

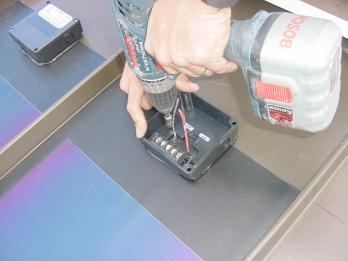

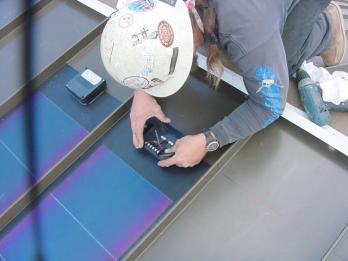

Applying Sealant To Back Of Box &
Place On Output Lines, Secure With 2
Outline Of Box On Panel
Screws To Retain While Sealant Dries
Placing Cover On Box Until Wiring Is Started

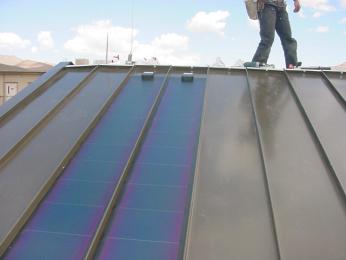

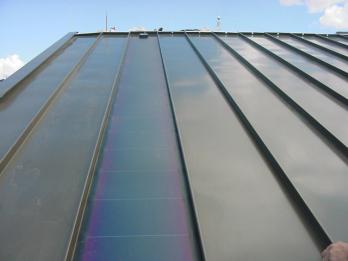

Completed Photovoltaic Solar Panel
5-20-02

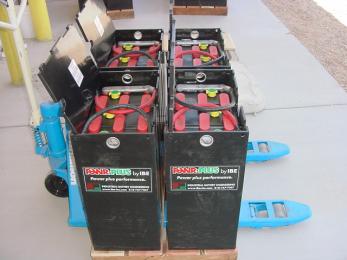

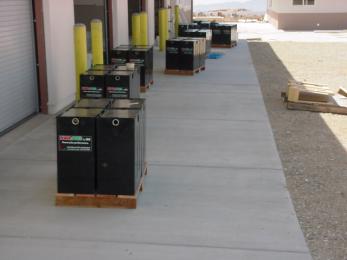

Solar Batteries Mounted On New Pallets, Ready To Put In Battery Room

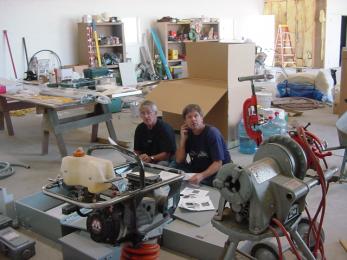

A.V. Comm. Shawn Lavato, Installing Phone Box Cameron Cardenas

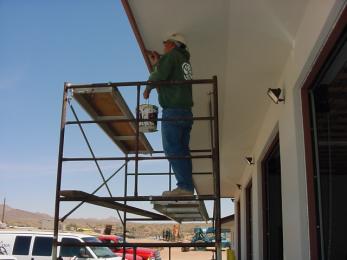

JRCCI, Fascia Touch Up
Terry Sappington, JR ELECTRIC

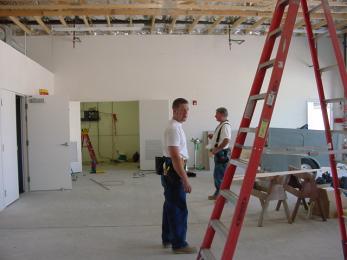

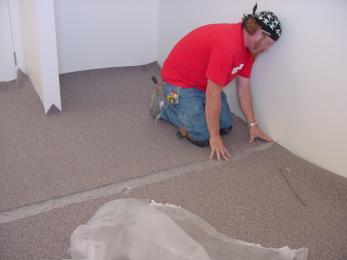

Installing Rolled Carpet In Bedroom,
Phil Clowder, WARREN CON.
Floor Store

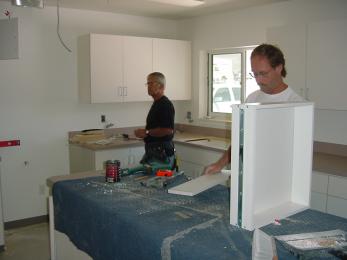

Kitchen Installation
5-23-02
Continue Fascia Touch Up
Great Minds Going Over Solar Wiring
J. R. & Terry Sappington
What Next! Rusty Sappington

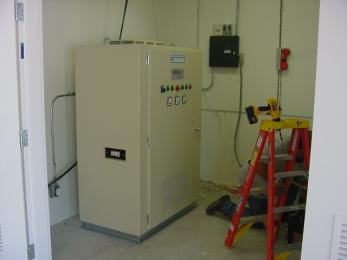

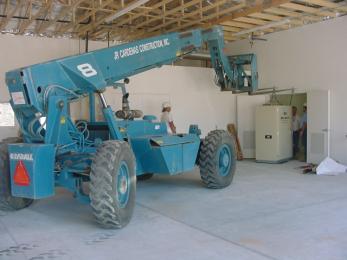

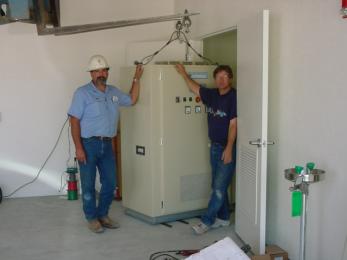

Inverter, Ready To Go In
Mike Cardenas & J. R. Sappington
Inverter In Place
6-10-02

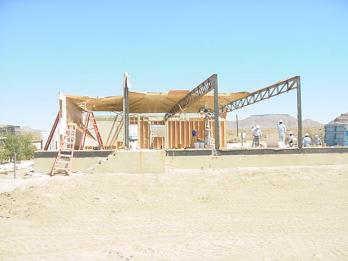

Old Dorm With 50% Walls & Roof Removed Don Farris
Trucking, 1st Load of Old Dorm

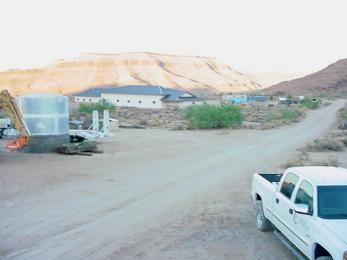

Looking North At Old Dorm
Sunwize, Mike Kocsmerski - N.Y.

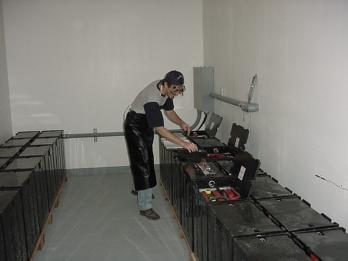

Checking Batteries
Sunwize, David Love - Washington

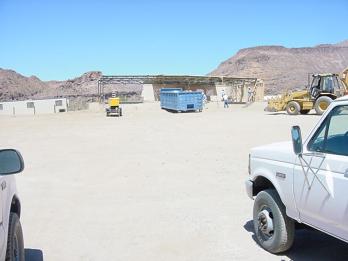

All Walls Down On Old Dorm
Cutting & Removing Steel Floor Joists
1 of 12 Piers 4’ x 4’ x 18’’ Of Concrete

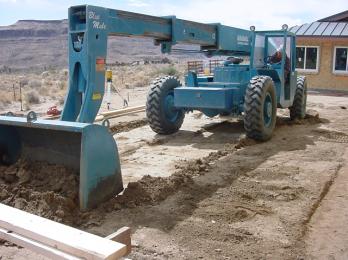

Gradall At Work
3 Roof Trusses Cut And Ready For Loading

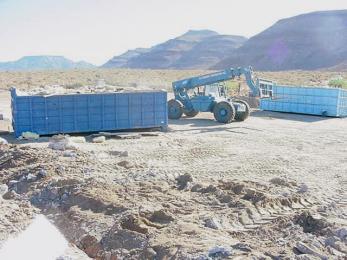

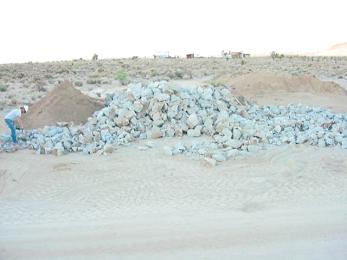

Pile Demod Concrete After 2 Truck Loads Removed
West Side Of Barn
6-18-02

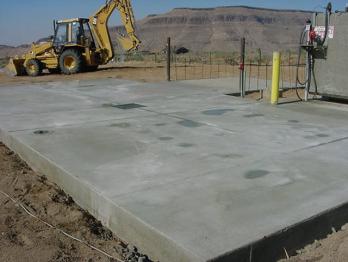

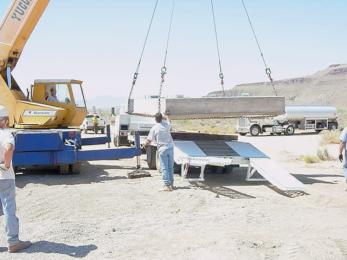

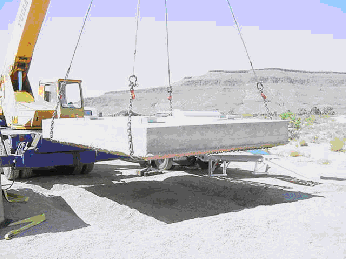

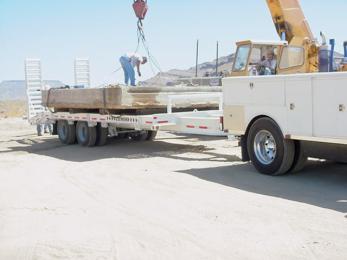

Moving 40,000 lbs Concrete Fuel Slab To Final Location
Moving 40,000 lbs Concrete Fuel Slab Mike
Carter, Cameron Cardenas

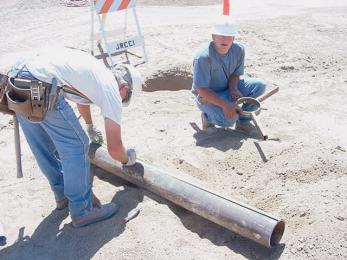

Ready To Install Gate Post
6-24-02
PRV / Shut Off At Wash Rack
Asleep At The Wheel

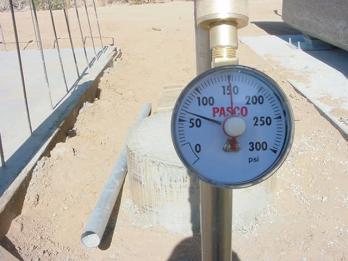

Yard Hydrant Set At 65 lbs.

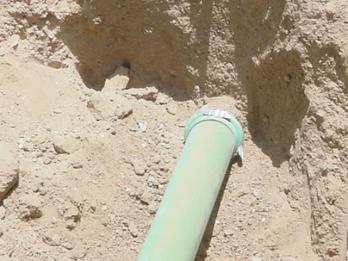

Outlet Wash Rack Drain

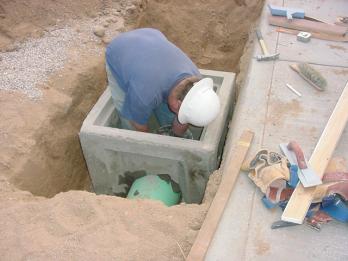

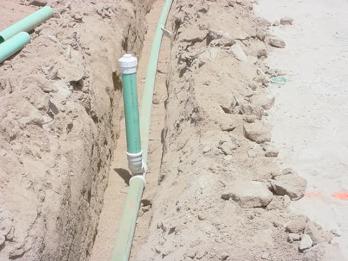

Yard Clean Out, Oil / Sand Interceptor

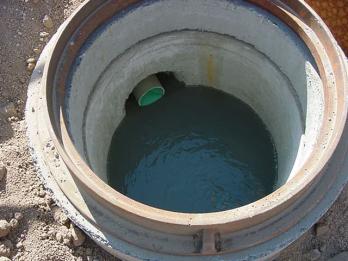

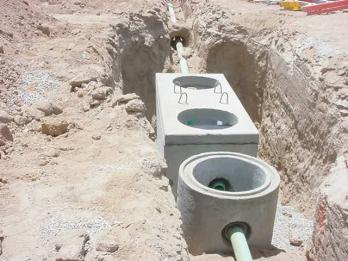

Oil / Sand Interceptor Set
Yard Clean Out
Wash Rack Ready To Pour
Tie Into Trash Slab
Center Drain

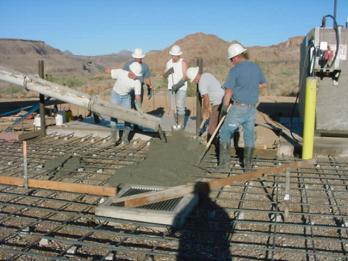

Morning Pour
Wash Rack Mud Placed

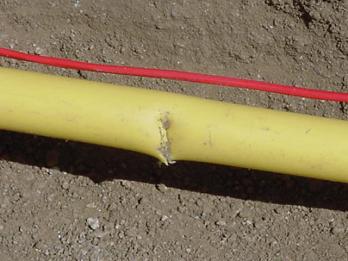

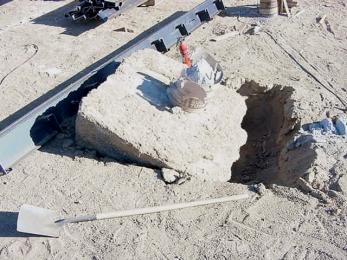

Location Of Damaged Gas Line
Gas Line Hit By Metal Form Stake Mike
Carter Inspection Wash Rack Slab
Installing Base For Entrance & Gate
Finished Wash Rack

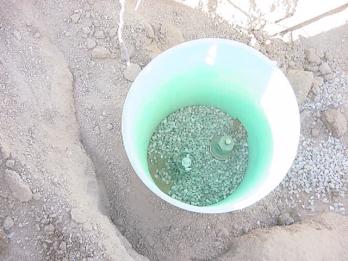

Checking Inspection Tank For Flow

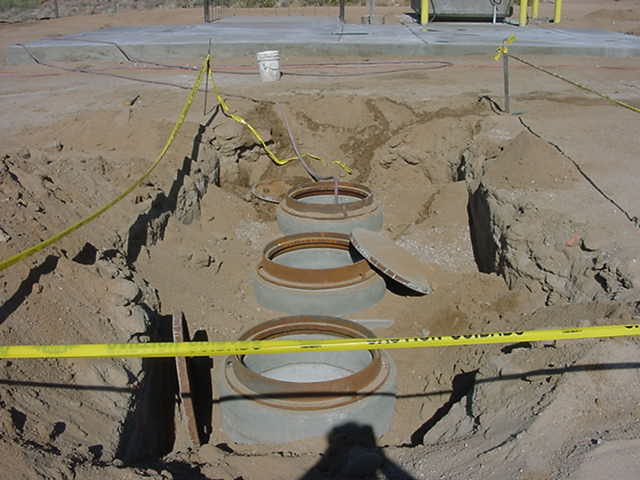

Oil / Sand Interceptor Ready For Back Fill,
12” To Be Added Under Metal Rings To Bring To Grade
7-3-02 and 7-10-02

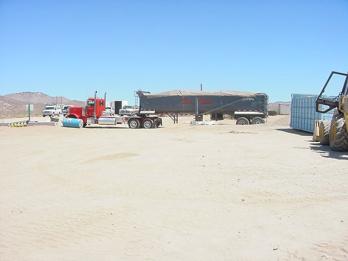

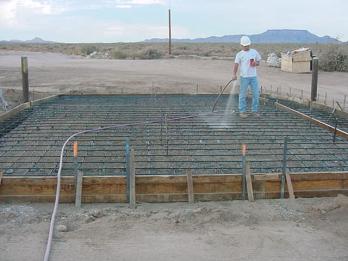

Pre-water On apron
Start Floating Waiting For Truck

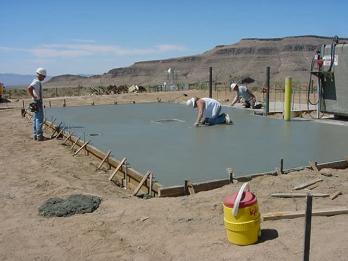

Mud Placed

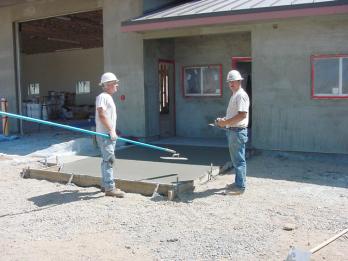

Cameron Cardenas Finishing Sidewalk Ready To
Use Wash Rack First Time
Ready For First Use
7-10-02, 7-12-02 and 7-18-02

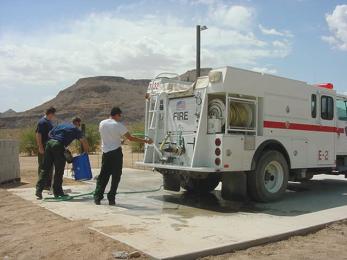

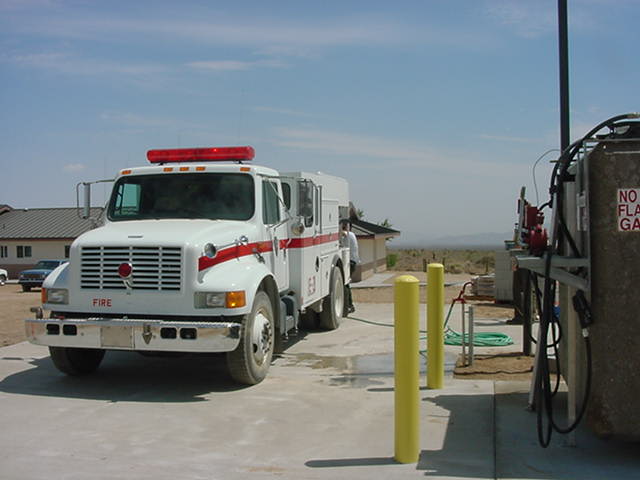

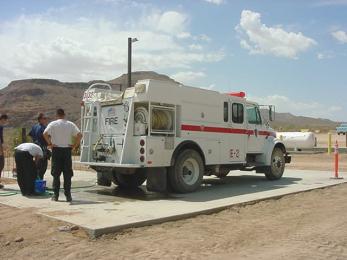

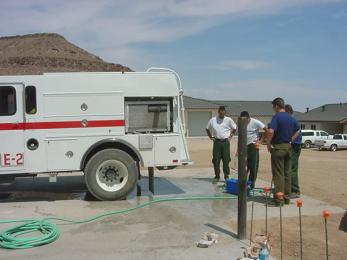

First Use Of Wash Rack
Southwest Corner Trash Enclosure
First Course On Trash Enclosure
Bond Beam
Bond Beam
Bond Beam

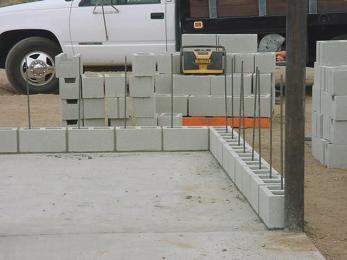

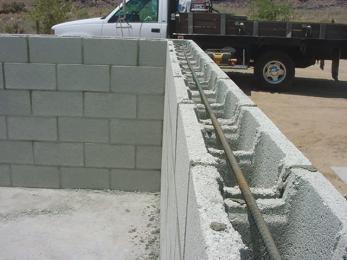

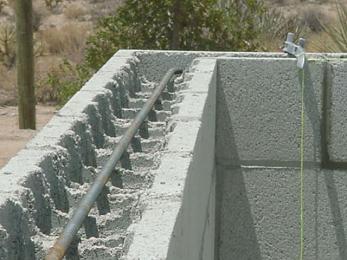

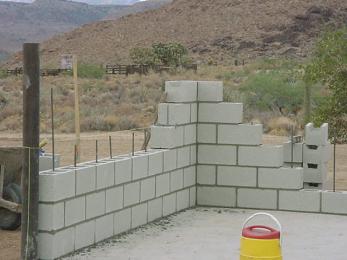

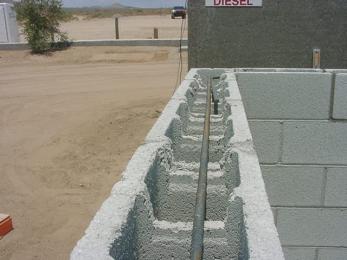

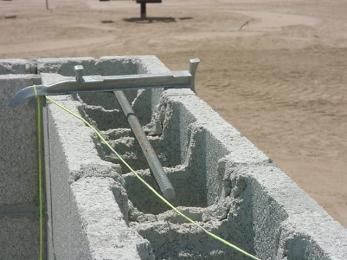

4’ Bond Beam
6’ Tall Trash Enclosure, Read For Grout
Trash Enclosure Read For Grout & Cap Fire HITW
7-12-02 Started By Lighting
HITW Fire --- 650 Acres --- 155 Men To Fight

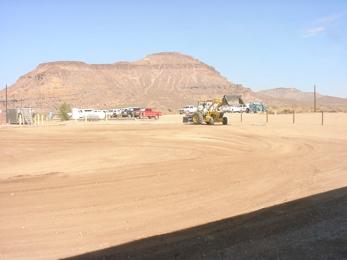

Terminal Final Grade

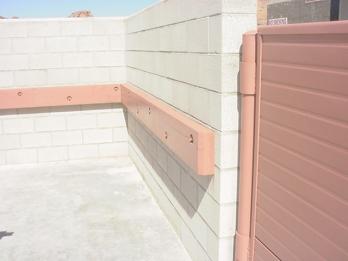

Ledger Inside Trash Enclosure Completed

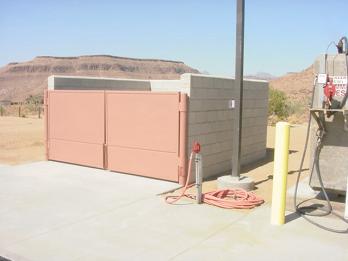

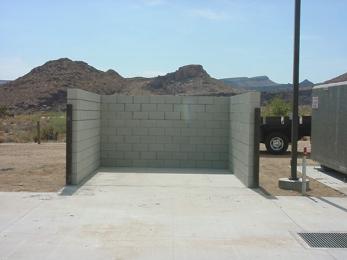

Trash Enclosure
Completed Entrance Gate

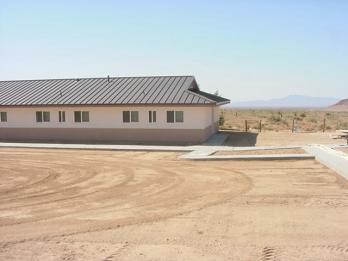

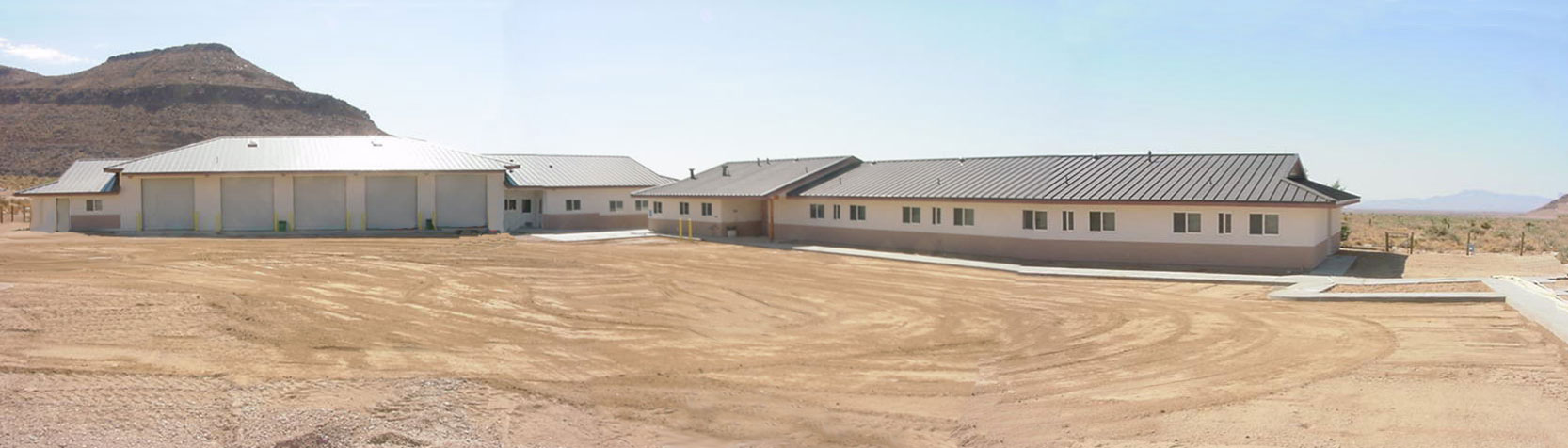

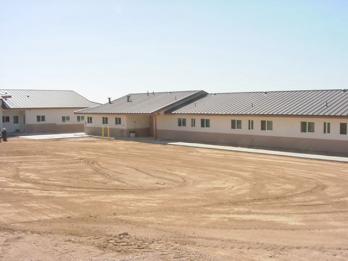

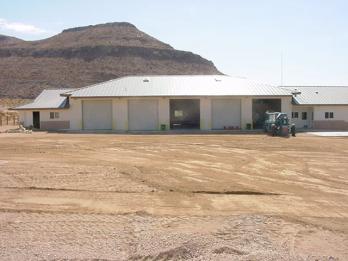

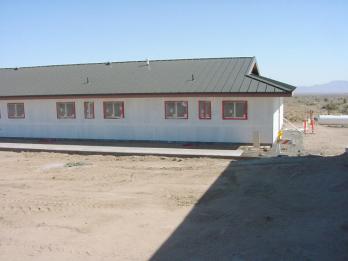

Final Shots Of Job
Final Shots Of Job.
