Project Site Loading Dock Site
DEATH VALLEY NATURAL HISTORY ASSOCIATION
OFFICE / WAREHOUSE PROJECT
Death Valley, California.
| START DATE: November 10, 2001 CONTRACT COMPLETION DATE: May 15, 2002 SCOPE OF WORK: Construction of a new 3060 square foot combined office warehouse building. PEMB, concrete slab on grade, masonry, metal stud interior partitions, gypsum board, cabinets, windows, suspended acoustical ceiling, doors, electrical, HVAC, plumbing, fire sprinkler, fire alarm, data base conduit & wiring. Special Construction – R-43 insulation for Roof and Walls. |

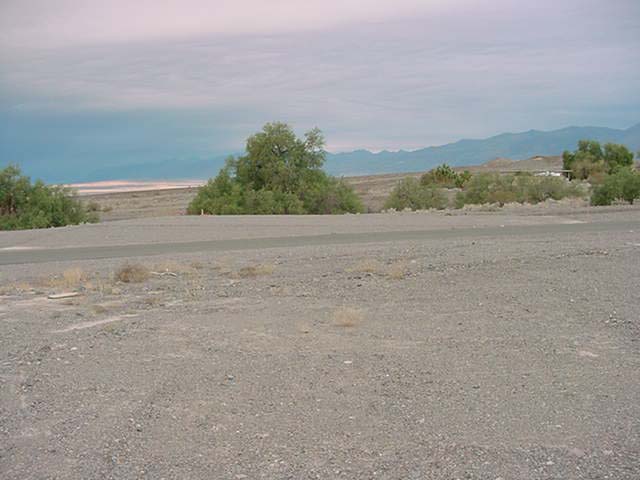

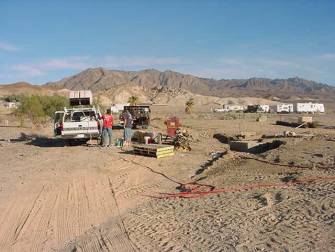

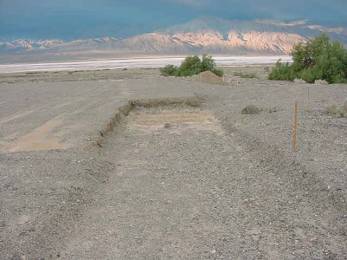

Project Site
Loading Dock Site

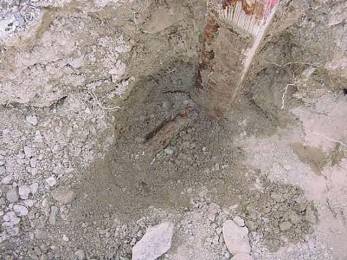

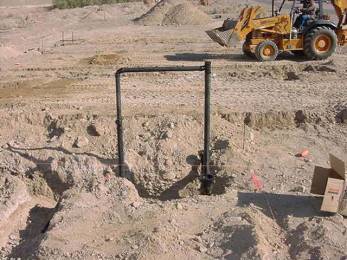

Pothole For Water Supply Water
Tap & Main Valve

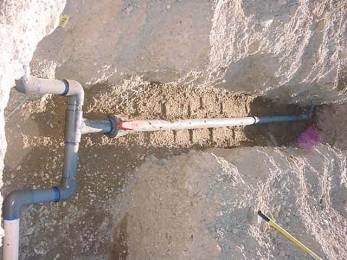

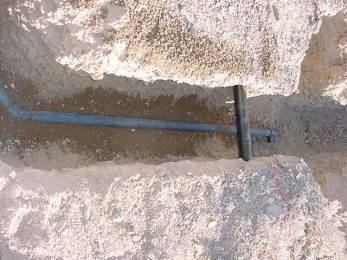

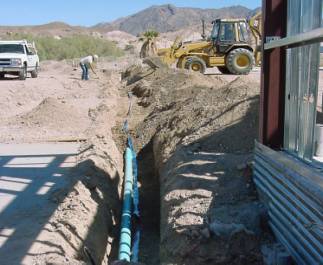

Water Supply Line

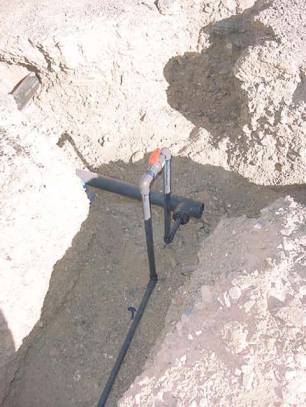

Main Water Supply Valve

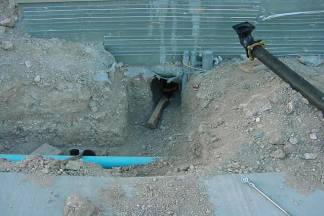

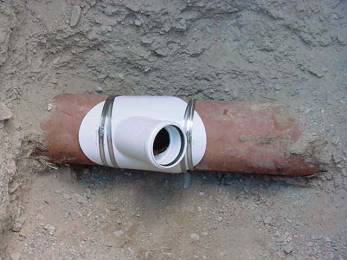

Sewer Connection @ Main Sewer

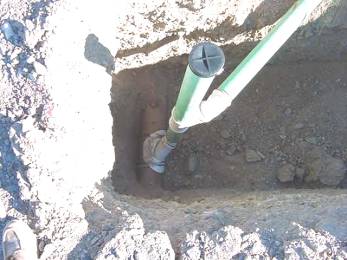

Cleanout @ Main

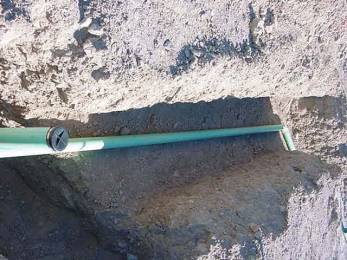

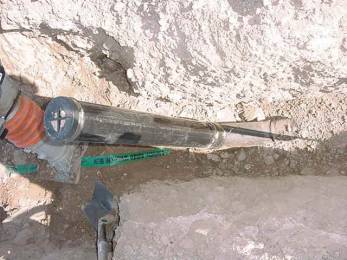

Sewer Line

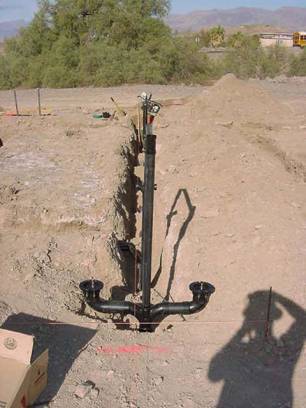

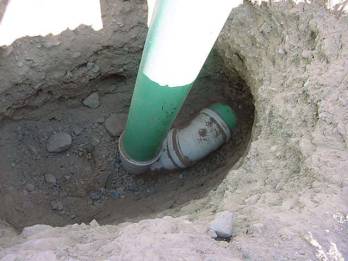

Sewer Connection For Cleanout
Sewer Cleanout @ Building
Toilet & Sink Drains
Toilet Sewer Lines
Water Supply Valve

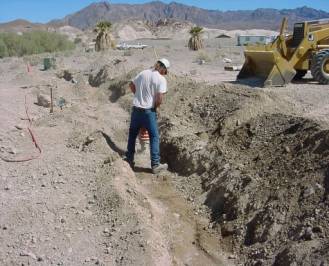

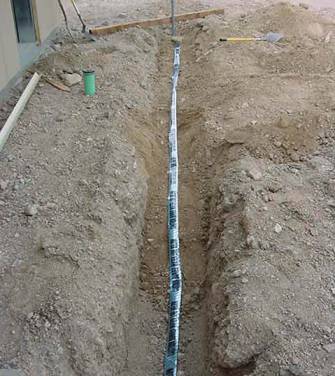

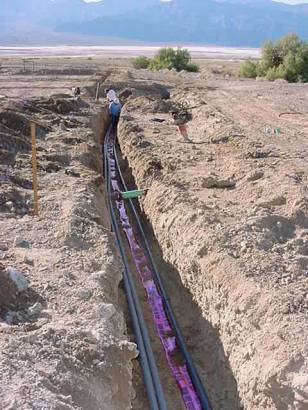

Common Trench for Elec., Telephone, & Water

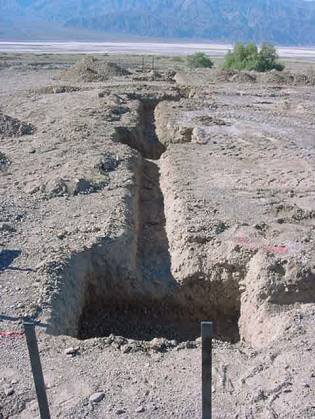

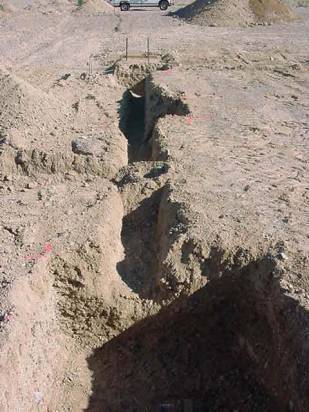

Perimeter Footings
Perimeter Footings

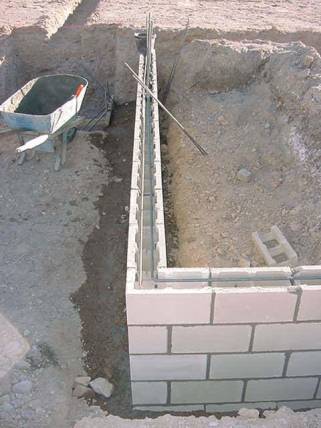

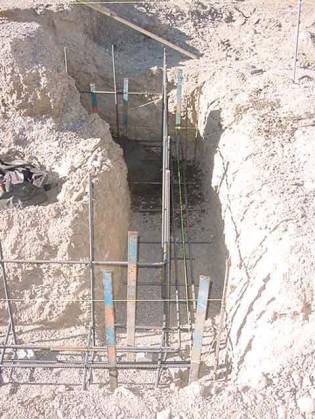

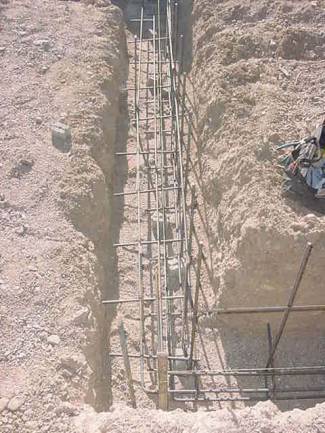

Rebar in Masonry Footings
Rebar in Masonry Footings
Rebar in Block Loading Dock
Importing of RO Water for Masonry Completed

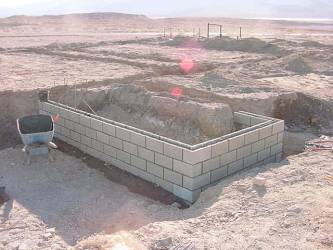

Block Loading Dock

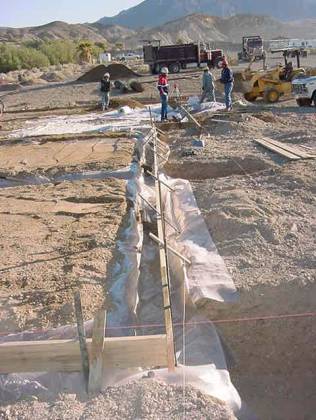

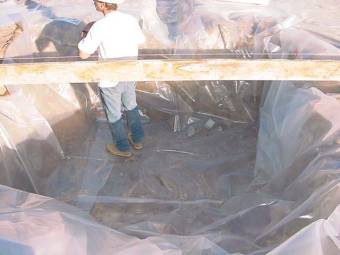

Placement of 10 Mil Poly in Footers
Poly in Column Footings

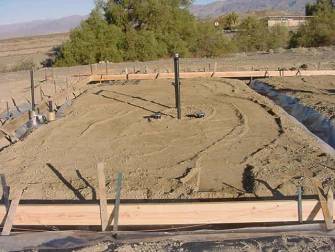

Forms & Compacted Base

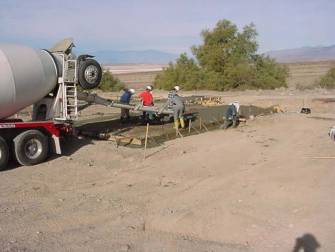

Pouring of Concrete

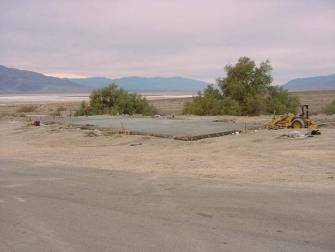

Building Slab

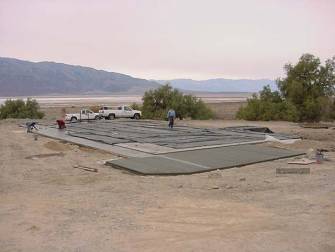

Placing Curing Blankets

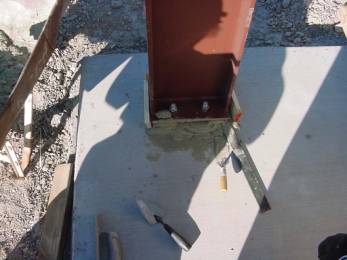

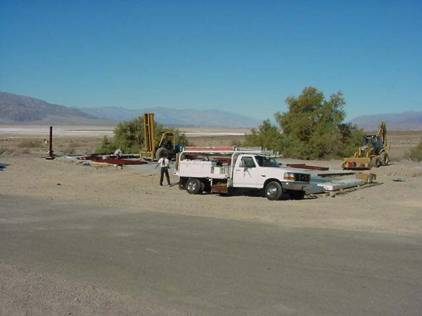

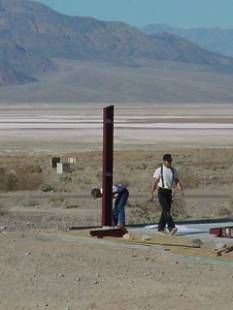

Kelly Penrod Placing First Column
Building Layout

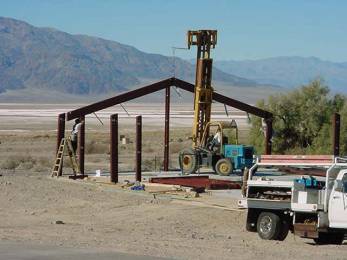

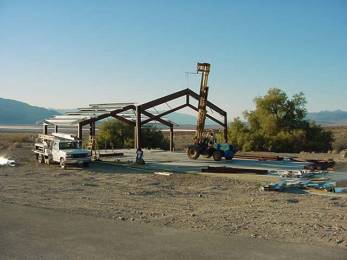

Placing First Beam

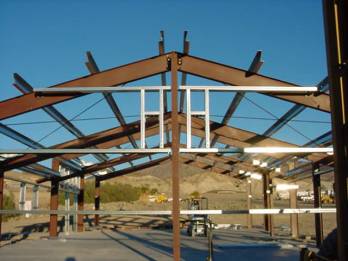

Placing High/Low Roof Beam

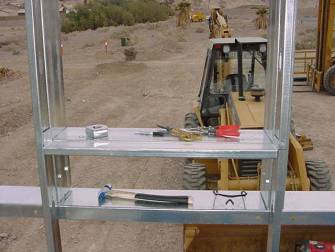

Framing of Windows
Framing of Windows & Door Way
Unused Vent Framing

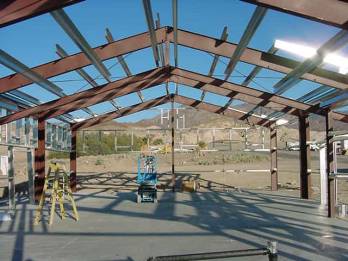

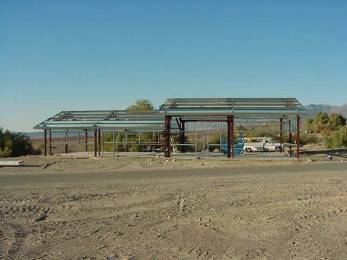

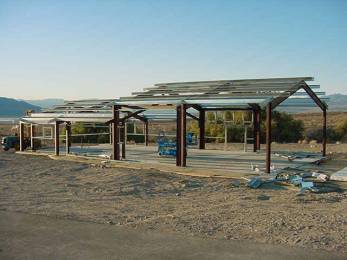

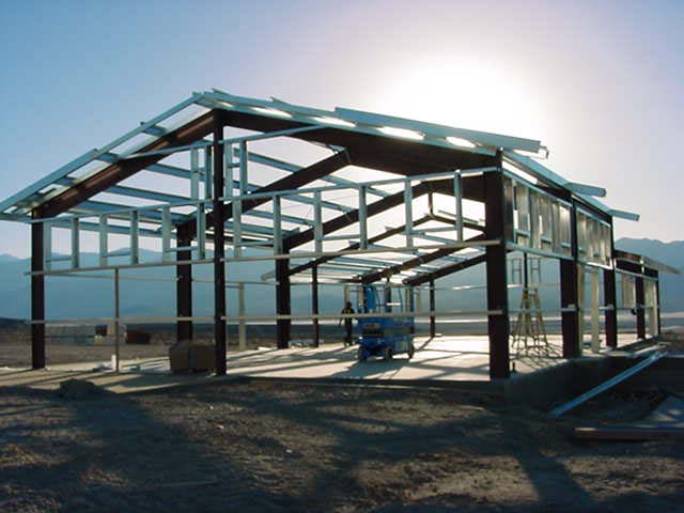

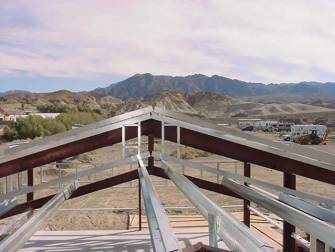

Heavy Iron And Purlins in Place West View

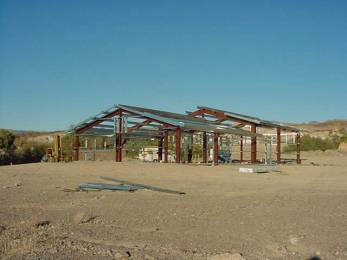

Heavy Iron And Purlins in Place South Views

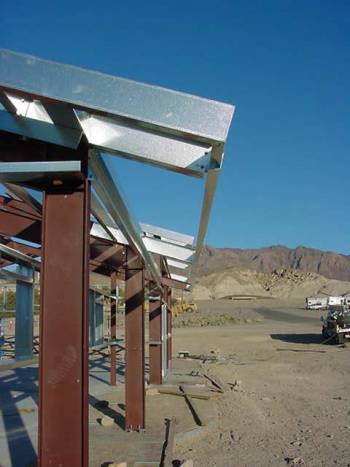

Infrastructure Fascia Trim
High Foundation Wall

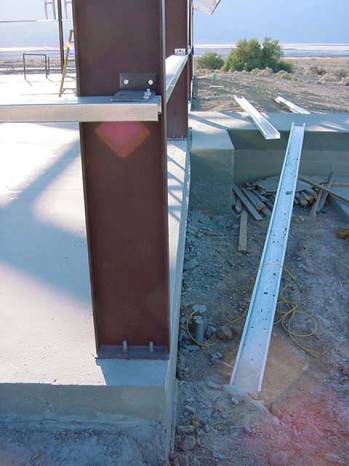

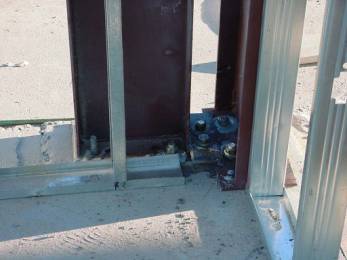

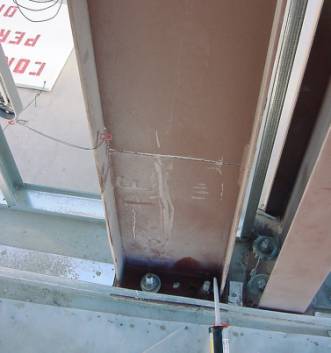

Portal Frame Attachment
Attaching of Wall Panels

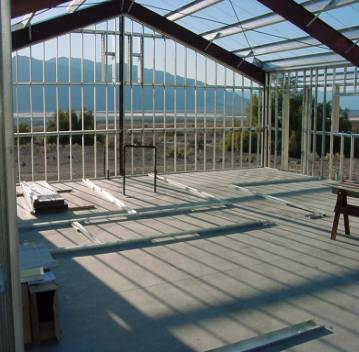

Layout of Interior Walls
Epoxy Anchor Bolts
Interior Wall Framing
High Rider System
Purlin Cap and High Rider System
Dry pack in Front Porch Area

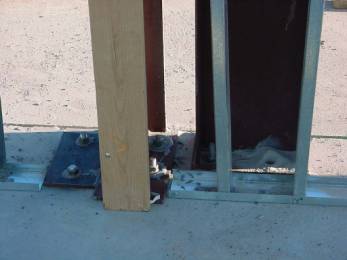

Anchor Bolt Placement

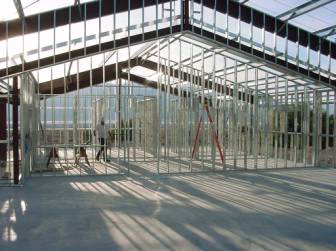

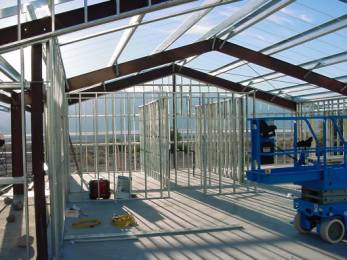

Framed Interior Walls
Framing of Windows

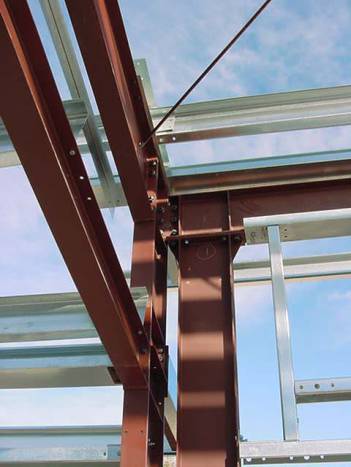

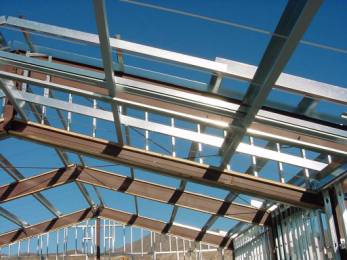

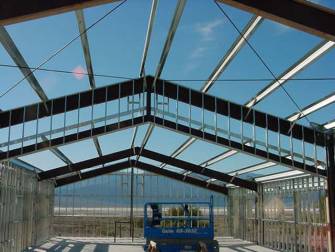

Girders & Purlins In Place
Wood Trim on Beams For Drywall Placement Framing of Doors
& Windows @ Loading Dock

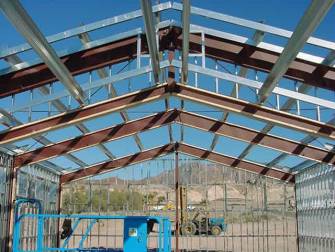

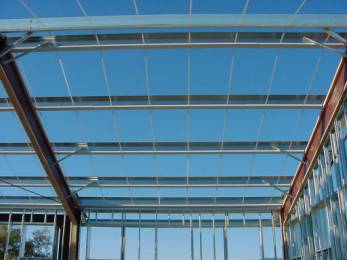

Roof Purlins

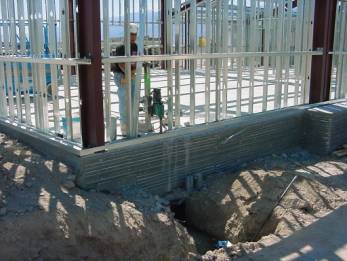

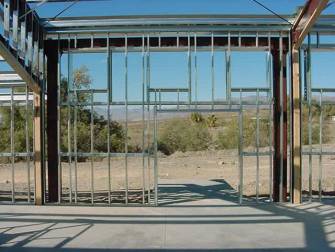

Exterior Wall Framing

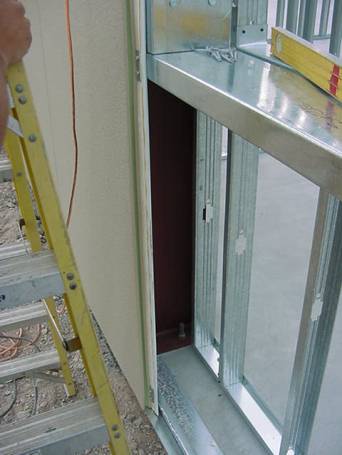

Wall Panel Connection

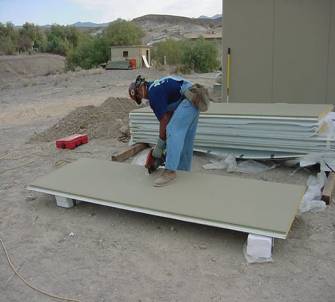

Alex Lopez Cutting Wall Panels

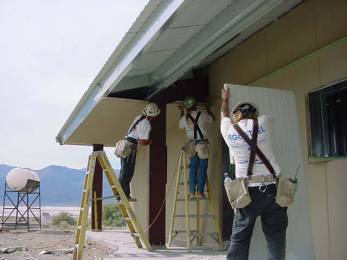

Placing Soffet Panels in Font Porch Area
Completed Wall Panels

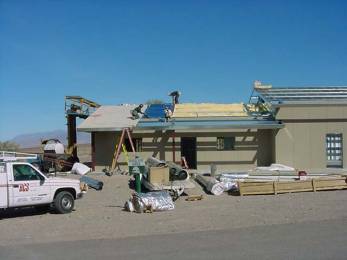

Placing Roof Insulation & Panels

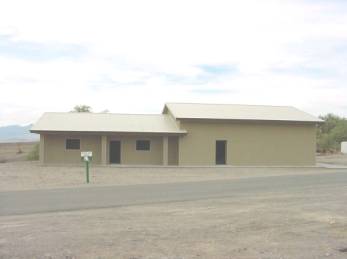

South Elevation

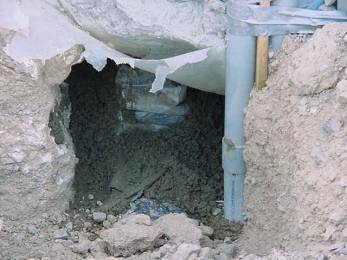

Thrust Block Under Slab
Coring For Fire Supply Riser
Under-Slab Fire Supply Line Ductile
Connection For Fire Supply

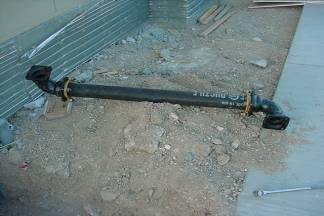

Fire Supply Line
Dave Moore Compacting Fire Supply Line

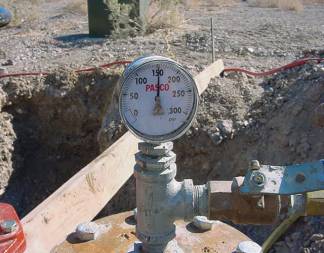

Pressure Tested For 2 Hours @ 150 PSI Water Supply
@ Backflow Preventer

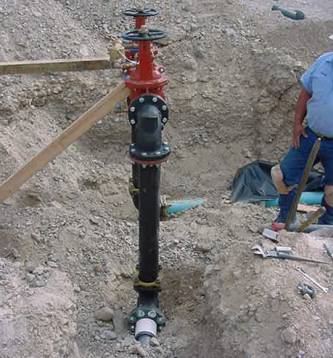

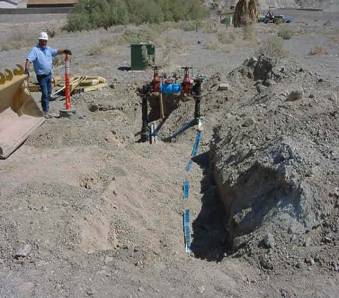

Jimmy Clair With Completed Backflow Preventer Backflow
Preventer Ready For Cement
Irrigation Line
Warehouse HVAC Unit

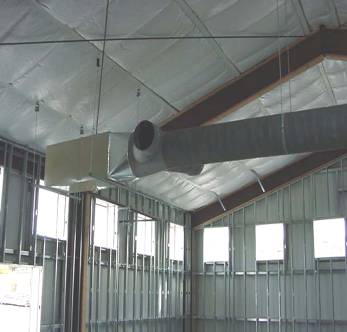

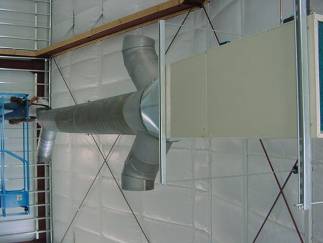

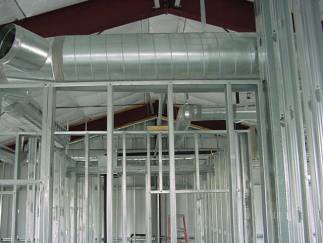

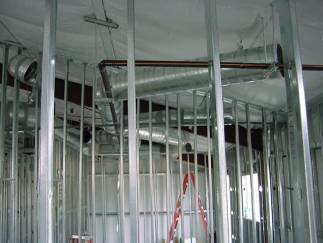

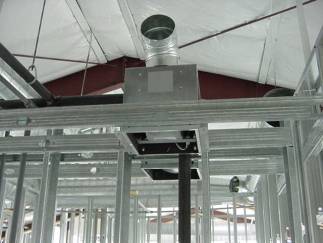

Office HVAC Duct Work Warehouse
HVAC Unit
Office HVAC System Bathroom
Exhaust Fans

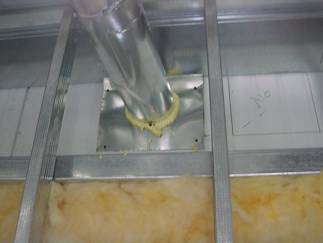

Exhaust Vent Penetration to Exterior of Building Rough In Plumbing
For Water Heater & Mop Sink

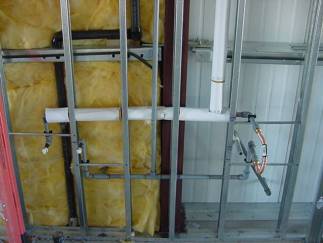

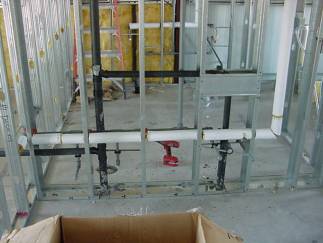

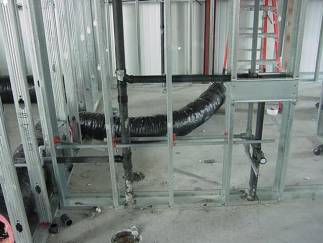

Completed Bathroom Rough In Plumbing Rough
in Bathroom Plumbing

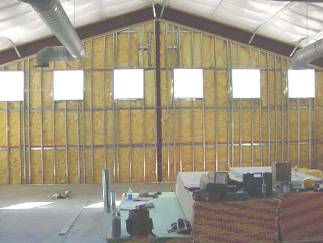

East Wall Insulation & Framing South
Wall Insulation & Framing
Firewall & High Wall Steel Framing
Wall Insulation & Electrical Conduits

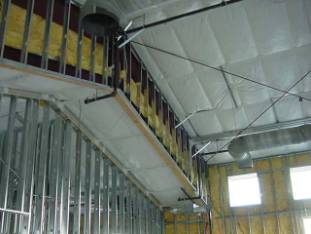

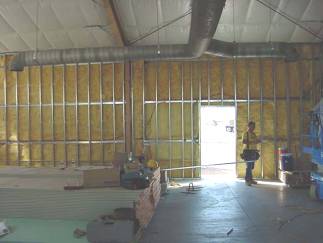

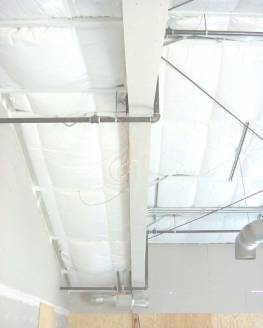

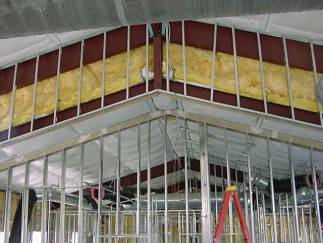

Roof & Wall Insulation

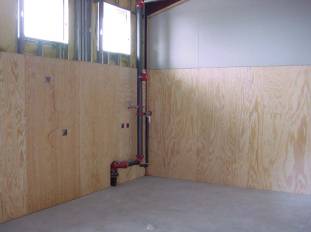

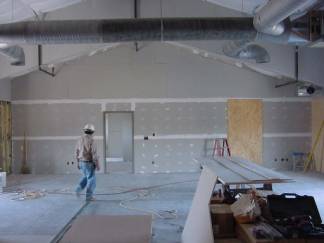

Plywood Skin in Warehouse

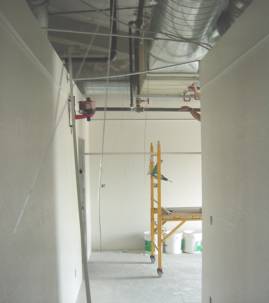

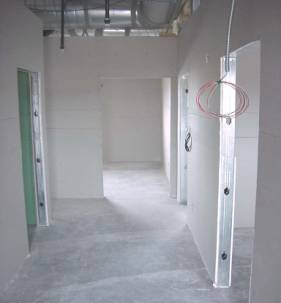

Un-taped Drywall in Hallway

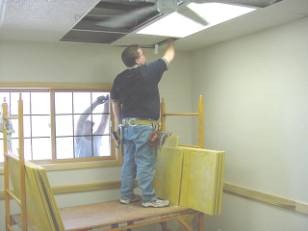

Hanging Suspended Acoustical Ceiling Grid
Bathroom Cabinet Greg Mayhan Placing Chair
Rail Steve Lewis Hanging an Exterior Door

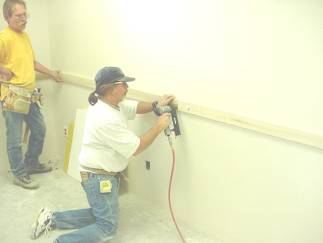

Installation of Chair Rail in Exec. Director’s Office
Fire Wall in Warehouse
High/Low Roof Wall

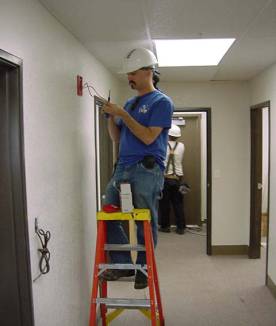

Jason Hoehn Installing Interior Horn/Strobe

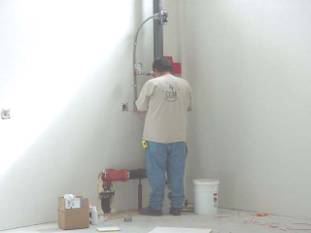

Shawn Lovato Connecting Water Flow Switch Installation
of Suspended Acoustical Ceiling

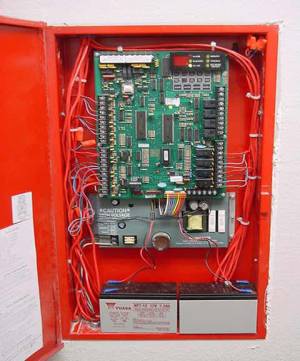

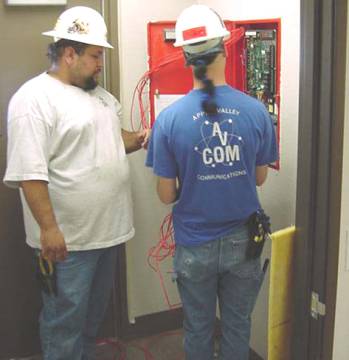

Fire Alarm Circuit Board Shawn
Lovato & Jason Hoehn Testing Fire Alarm System

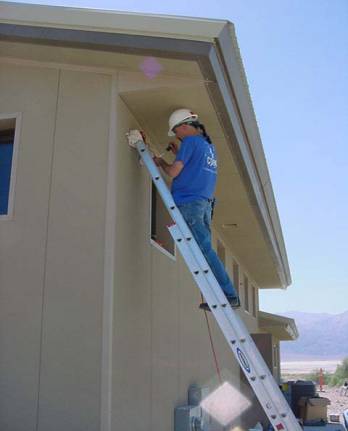

Jason Hoehn Installing Exterior Horn/Strobe Jerome

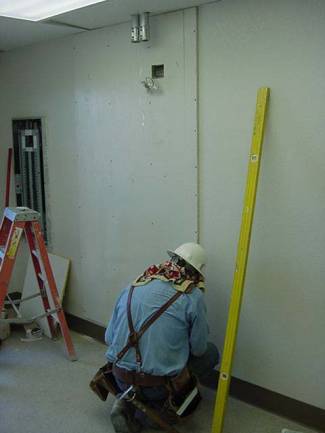

Cardenas Hanging Telephone Backboard

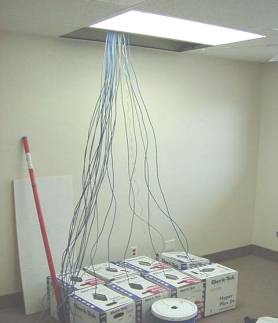

Data & Voice Cabling

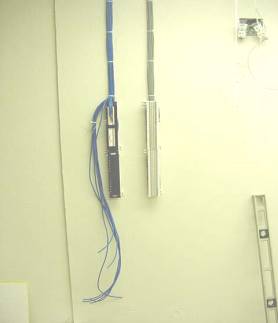

Data & Voice Punch box
Exhaust Fan & Hood

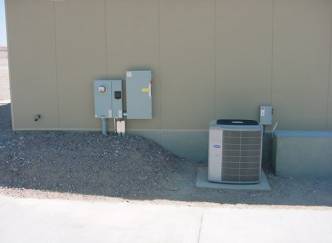

Main Breaker & A/C Unit

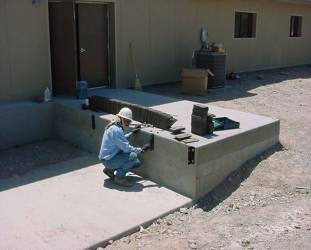

Bump Stop Installation

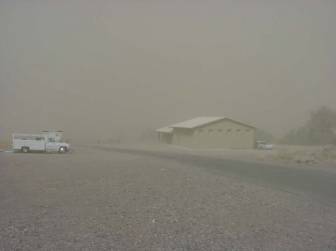

Dust Storm

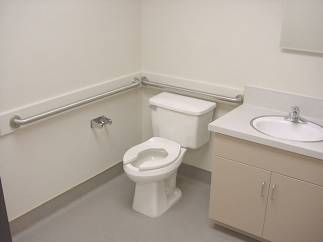

Finished Bathroom

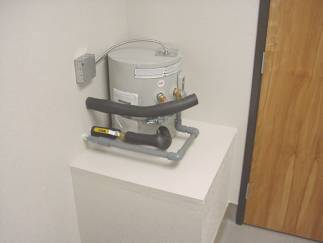

Water Heater

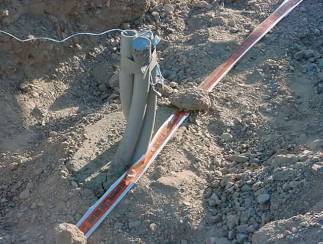

Telephone Conduit @ Pedestal With Thrust Block

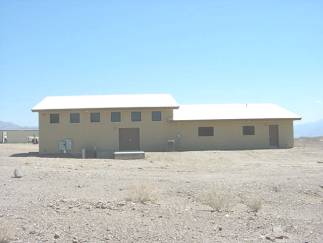

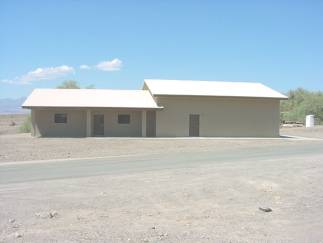

East Elevation

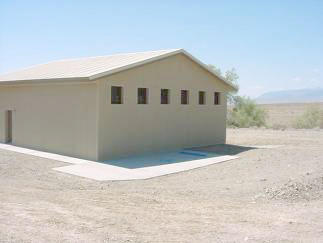

North Elevation

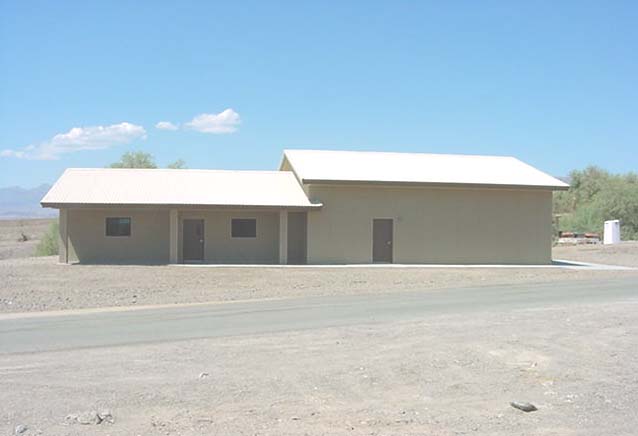

South Elevation
November 28, 2001
May 14, 2002
