Chalone Creek
Fire Cache Building- 1500 sf.
Dormitory - 4000 sf.
Trails Building - 3000 sf.
Site Utilities.
Chalone Creek Support Area, Pinnacles, CA.

11-11-02 to 11-18-2002

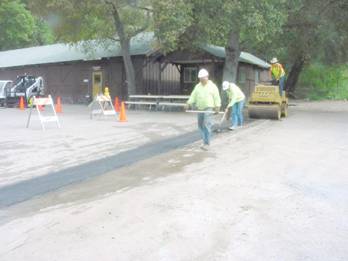

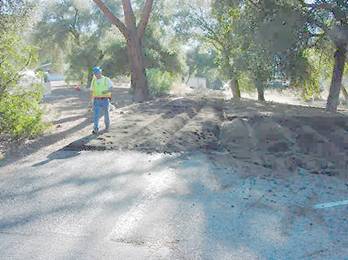

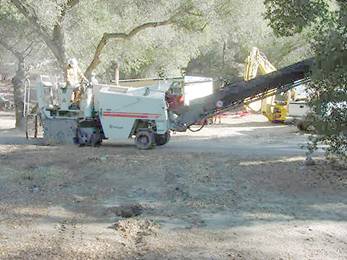

Asphalt Grinding Machine Removing Asphalt for 6” Water Loop

Steve Layton Grooving Pipe for Temp Water By-Pass Ground Up Asphalt Roadway

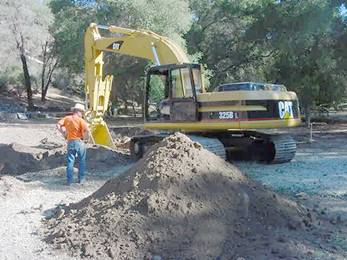

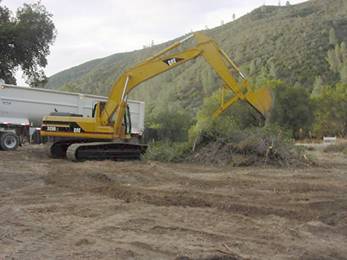

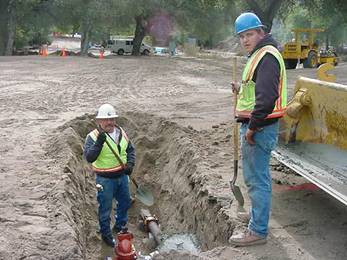

K. Nickerson Excavator on Site Temp 3” Line Completed

Temporary 3” Water Line In Place Temporary Water Tanks, During

Refinishing Of Main Tank

Oak Tree Removed, Future Dorm Site C. Cardenas Capping Water Main,

So Dorm Pad Can Be Cut

Capped Main K. Nickerson Compacting Keyway on New Entrance

Excavation over Pad, Started Steve Layton Clearing Tree Brush

C. Cardenas Cut Main Tree Trunk 46” Across, Red Oak

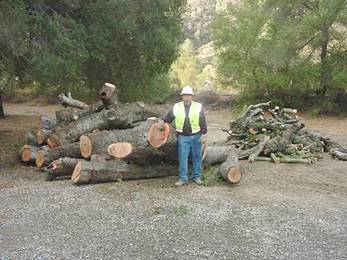

C. Cardenas with New Stihl S. Layton Pile of Wood from 2 Oaks

Loading Hi-Side with Tree Roots & Brush

November 25 to December 5, 2002

Old LP Gas Pipe Removed From Trailer Pad C. Cardenas Installing New Water Line for Trailers

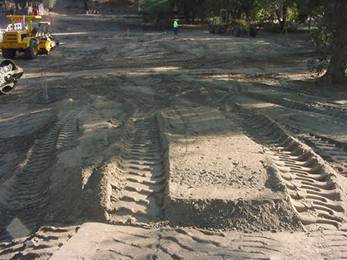

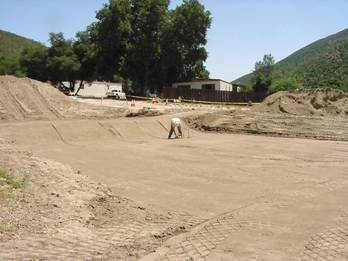

Sheep’s Foot Compacting Trails Pad Leveling Fill Trails Pad

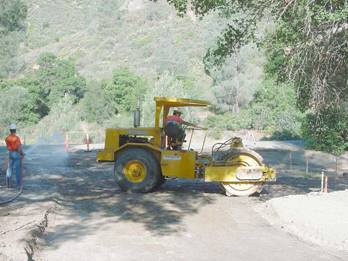

Smooth Drum on Trails Pad Steve Layton Grooming Around Trailers

Gym at New Location Ready to Be Leveled Finished Fire Cache Pad

Completed Moved & Hook-Up Gym & Lab Looking Across Back of Fire Cache to Entrance Ramp

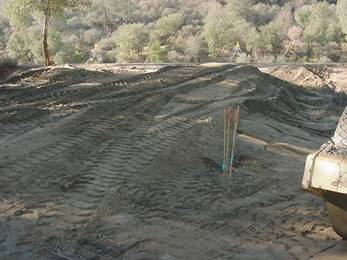

Gym Setup on New Location Final Grade on Trails Pad

Placing Fill on Ramp Looking Toward Project from Access Road

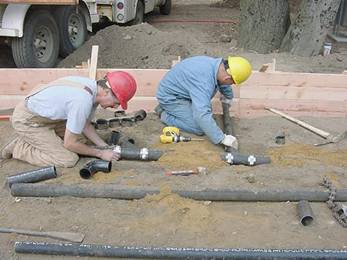

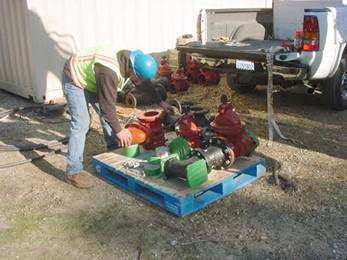

Cameron Cardenas Assembly of Valves Duplex Pad

Temp Water Trailer 3” Sag in Top of Bed Nicholson Scraper Removing Dirt from New Duplex Pad

Entrance Ramp, Still Needs 12” Culvert 6” Valve Installed In Tank Line To Site

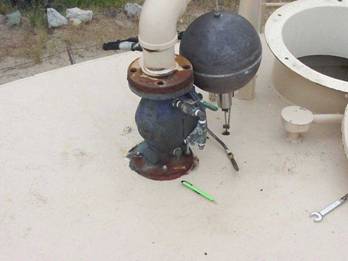

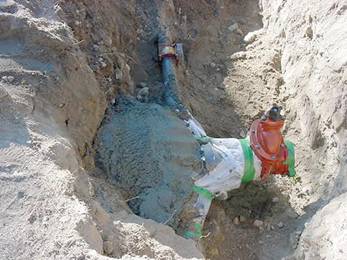

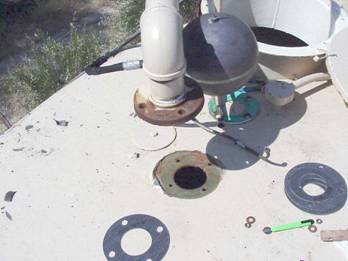

Tank Valve with Kicker Installed Placing Kicker on Valve for 6” Loop

Jimmy Clair & Cameron Cardenas New 4” Valve Tie In For Trail Fire Sprinklers

Pipe + Valve Installers Inc.

December 9, 10, 11, 2002

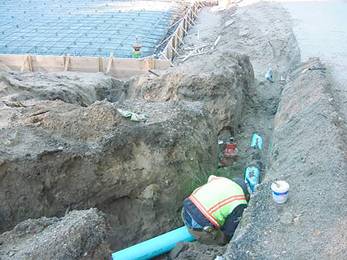

Trenching Riser on Trail Building Al Plaxton Compacting Footings

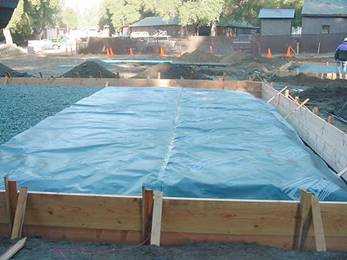

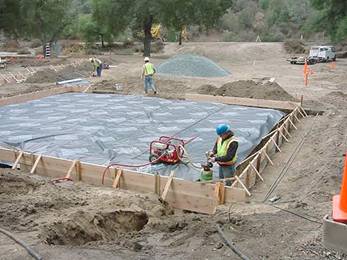

Fire Cache Chalked Out For Trenching Vapor Barrier Spread on Fire Cache

Cameron Cardenas Pressure Testing Riser

Al Plaxton & Cameron Cardenas Mc Kibbon Plumbing Installing Waste Lines

In Trails Building

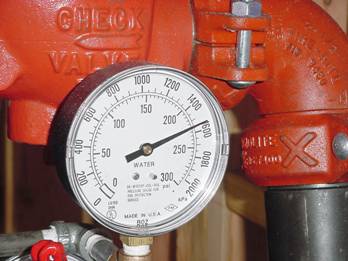

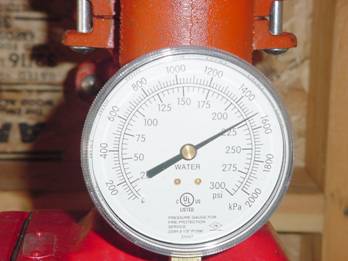

200 PSI on Sprinkler Riser Fire Cache Waste Lines Installation

Cameron Cardenas, Jimmy Clair Testing Riser 200 PSI - Trails Building

In Trails Building

Sand Installed On Fire Cache Vapor Barrier Going Down Over Gravel,

Trails Building

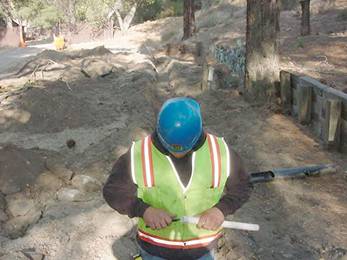

Trails Vapor Barrier C. Cardenas Preparing Fittings

Leveling Sand in Trails Building Taping Seams on Vapor Barrier

Trace Wire Installed On 4” Fire Line to Trails Building

C. Cardenas Assembling 90° D.I. Fitting Fire Line To Trails Building

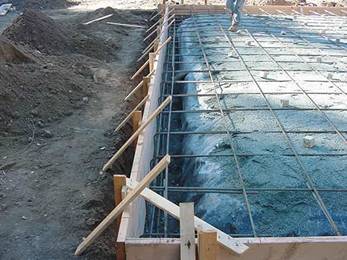

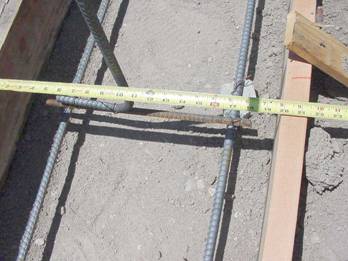

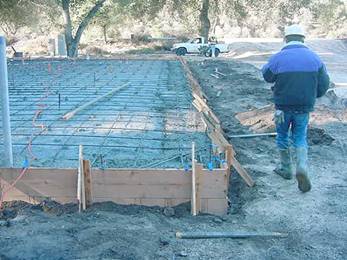

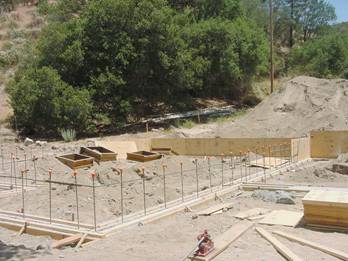

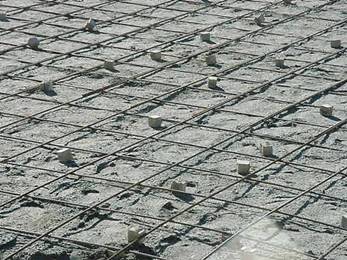

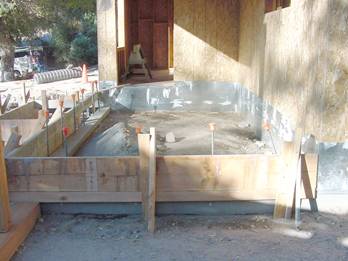

#4 Rebar Matt Ready for Dobbies Fire Cache

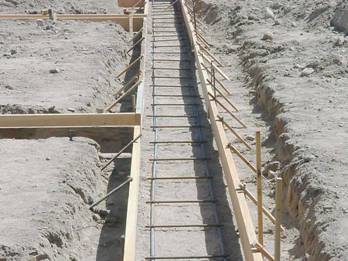

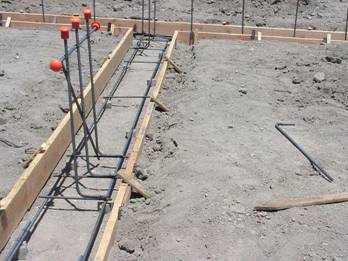

Rebar In Footings – Fire Cache

December 9, 10 & 11, 2002

Trenching Riser on Trail Building Al Plaxton Compacting Footings

Fire Cache Chalked Out For Trenching Vapor Barrier Spread on Fire Cache

Cameron Cardenas Pressure Testing Riser

Al Plaxton & Cameron Cardenas Mc Kibbon Plumbing Installing Waste Lines

In Trails Building

200 PSI on Sprinkler Riser Fire Cache Waste Lines Installation

Cameron Cardenas, Jimmy Clair Testing Riser 200 PSI - Trails Building

In Trails Building

Sand Installed On Fire Cache Vapor Barrier Going Down Over Gravel,

Trails Building

Trails Vapor Barrier C. Cardenas Preparing Fittings

Leveling Sand in Trails Building Taping Seams on Vapor Barrier

Trace Wire Installed On 4” Fire Line to Trails Building

C. Cardenas Assembling 90° D.I. Fitting Fire Line To Trails Building

#4 Rebar Matt Ready for Dobbies Fire Cache

Rebar In Footings – Fire Cache

12-23-02 to 1-7-03

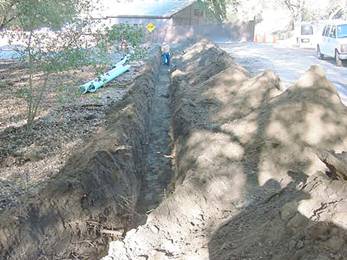

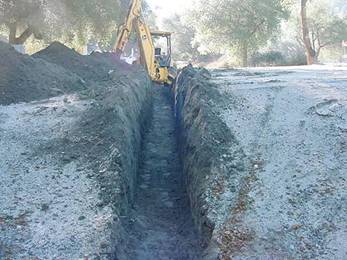

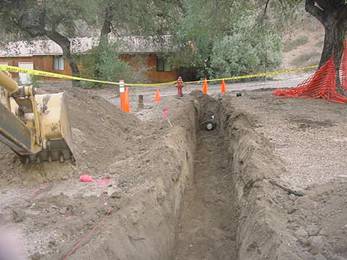

6” Water Trench, Look Toward Building 300 C. Cardenas Assembling 225 P.I. Fitting,

Behind Fire Cache

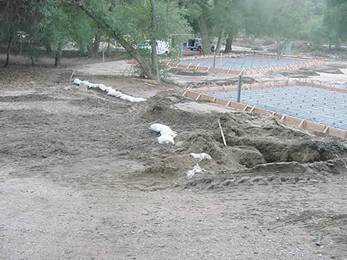

Diversion Next To Fire Cache, For Rain Water Sand Bagged Area behind Fire Cache

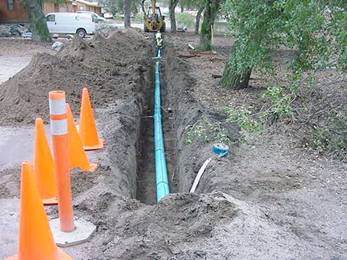

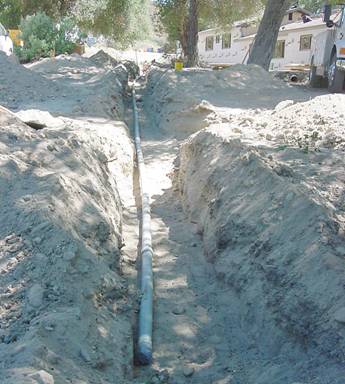

Setting Floor Drains, Trails Building 6” Water Line Heading toward Duplex 101 & 102

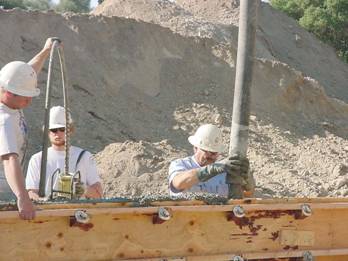

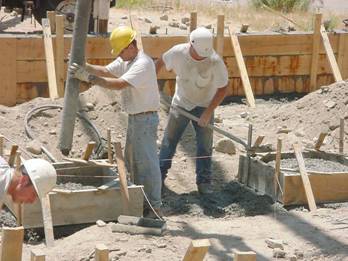

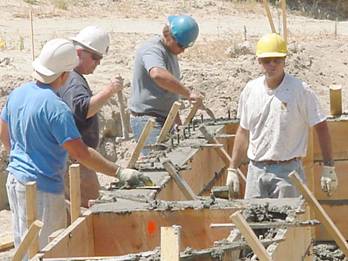

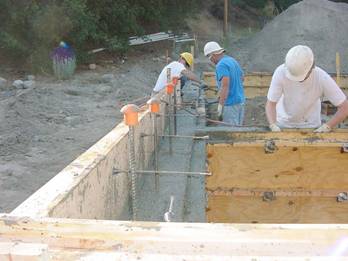

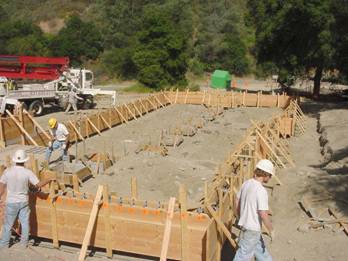

Al Plaxton Vibrating Footings Pouring Footings, Fire Cache

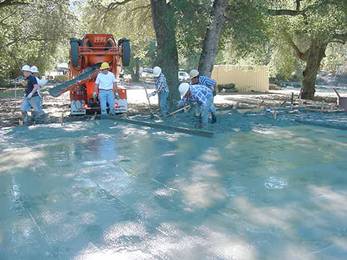

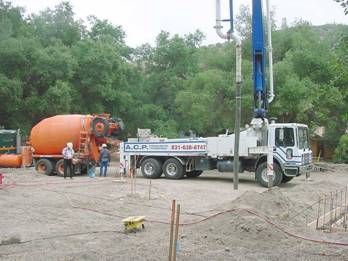

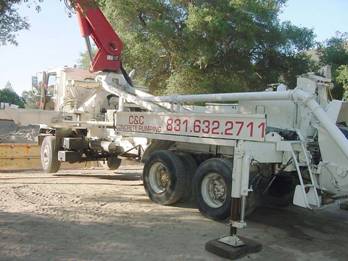

Pouring Fire Cache Slab Fire Cache Poured out

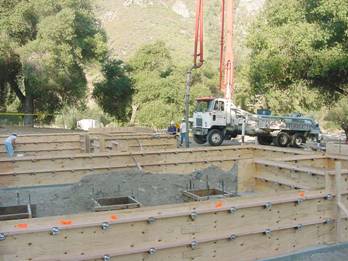

Footers Poured, Trails Building Pouring Slab Trails Building, Plaxton Concrete

Pouring Slab Trails Building, Plaxton Concrete 6” Water Line In front Of Duplex

6” Water Line In front Of Duplex Al Plaxton Cutting Joint in New Slab

Al Plaxton Cutting Joint in New Slab Soft Cut Machine

Joint in New Slab, Final Product C. Cardenas Backfilling with Skip Steer

C. Cardenas Backfilling with Skip Steer Tee & Valve In Front Of Duplex, 22.5” D.I. Fitting

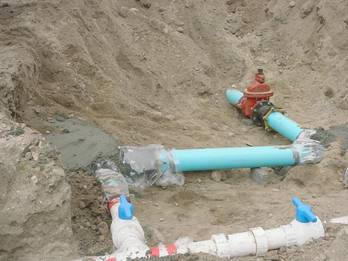

Looking To 22.5” Valve Assembly Looking Toward Duplex 102, 6” Gate Valve

Week of 1-13-03

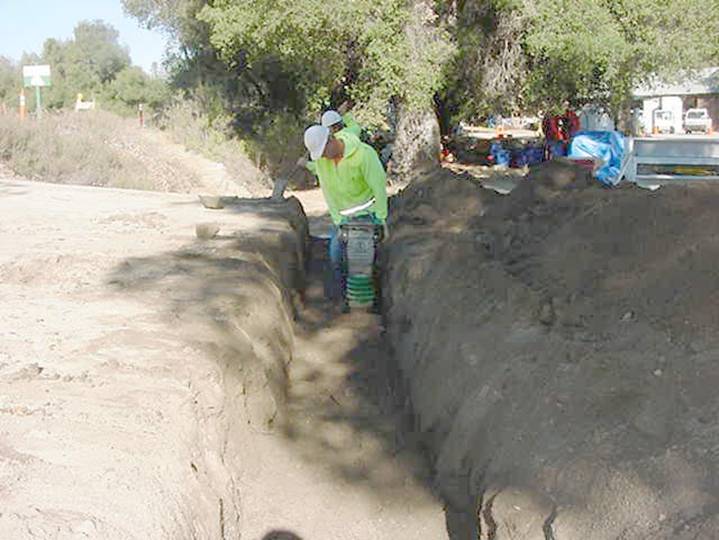

Compacting 6” Water Line Looking Toward Tank Line Need Breaker Point

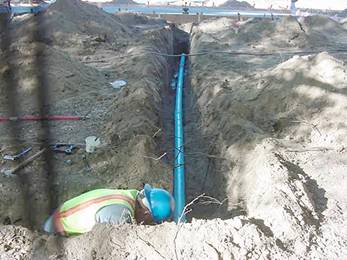

C. Cardenas Bedding Pipe 6” Lateral – Looking Toward Old Duplex 102

Looking Toward Tank Line, Hit About 30 FT of DG That Had To Be Broken Up With Breaker Point

Broken Up Ground in Water Trench Mod to High Pressure Waste Line Shorten Up Feed

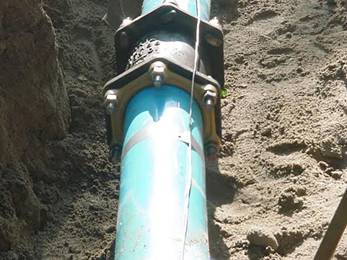

Coupler Fitting On 6” Water Pipe C. Cardenas Back Filling

Eric Freeth Reviewing Plans, Trails Unit Plated Trench for Culvert under Entrance

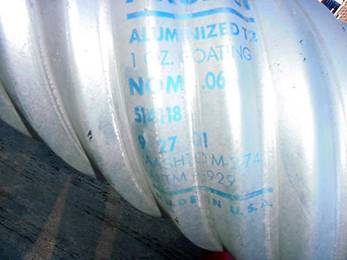

D. Moore, R. Akerstrom Cutting Studs Info on Culvert Pipe

Undoing Valve, Ready to Remove Hydrant C. Cardenas Removing Hydrant

Removing 2^ND Hydrant Removed 6” Barrel Hydrant W/4” Valve

Kurt Lanning, Compacting Soil over Culvert, Mark Nicholson Behind

Week 1-20-03 to 2-4-03

Relocated Hydrant #2 Ditch Looking Toward Existing Ductile Iron Pipe

150-PSI Test on Main Water Line Walls Stood Back Of Trails Building

Wall’s Stood Back Of Trails Building Ridge Beam for Fire Cache

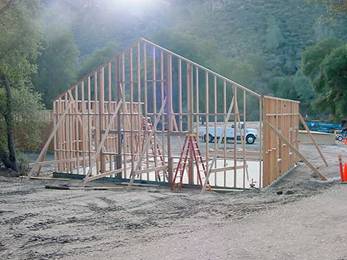

Front of Trails Building, Wall’s Stood Plumb & Lined

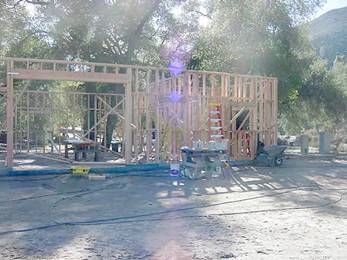

Framing Walls Fire Cache Mike Cardenas Conferring With Head Carpenter,

Eric Freeth

Side Walls Fire Cache Framed 1^st Load GG&E Sand for Bedding Conduit

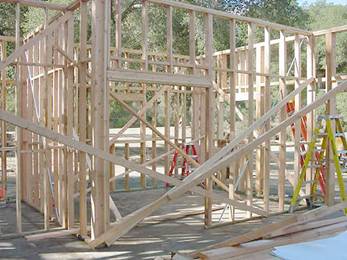

Nailing Blocks, Trimmers in Side Walls Walls Stood On Fire Cache

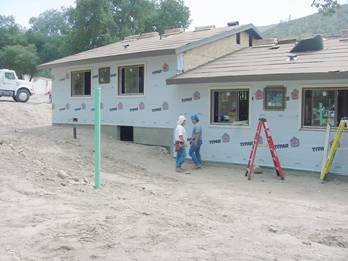

Ready To Frame Front Wall Trails Building Shear Panel Installed

Mike Cardenas Cutting Out Lookers in Gable Trusses Hand Trenching Around Existing Utilities

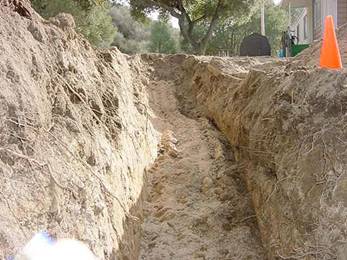

Trenched & Sand Installed, Main Electric Ditch

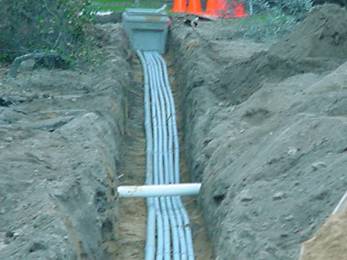

Trenched & Sand Installed, Main Electric Ditch Conduits Installed Toward Main Vault

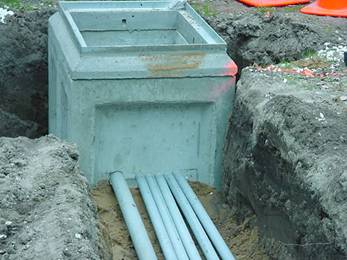

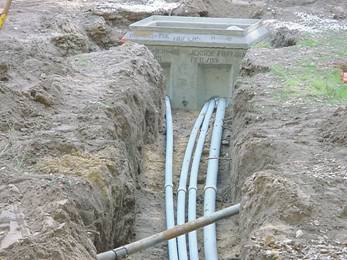

Conduits Installed To Main Vault Conduit Penetrations

Conduit Penetrations Inside Of Vault, Ready For Grout More Hand Digging

Rear of Fire ½ Sheared Cameron Cardenas, Eric Freeth,

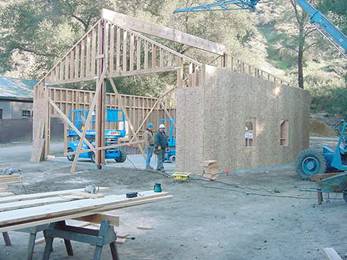

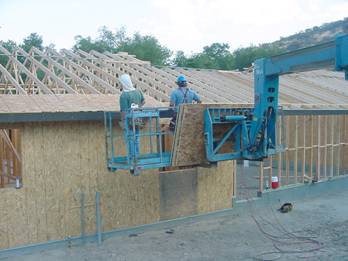

Installing Shear on Fire Cache

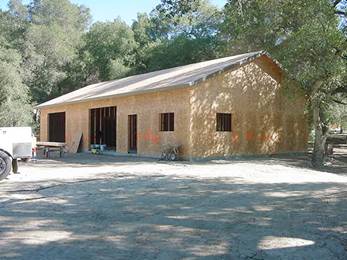

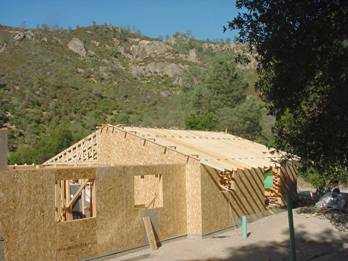

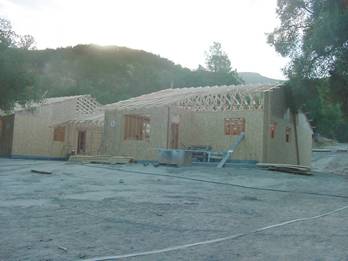

Framing Complete Trails Building Picture from Road

Week 2-5-03 to 2-13-03

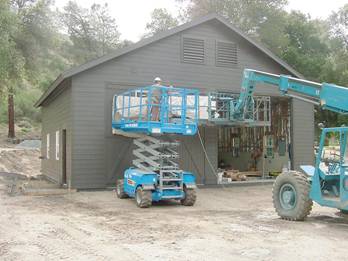

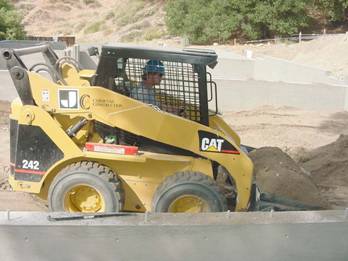

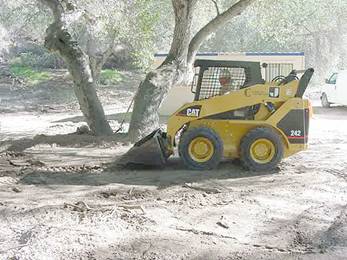

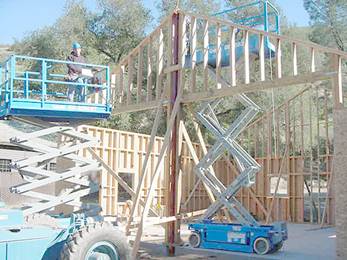

Jimmy Clair Grading With New Skid Steer Twin Scissor Lifts in Action on Fire Cache

Electrical Trench toward Comfort Station Electrical Penetrations in Vault

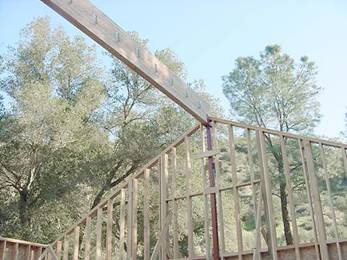

Setting Ridge Beam on Fire Cache Cameron Cardenas, Eric Freeth

Ridge Beam Set Conduits to New Buildings

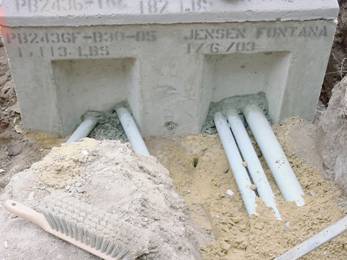

Conduits Grouted Into Vault

Conduit to Comfort Station Grouted Inside Vault

Grouted Vault

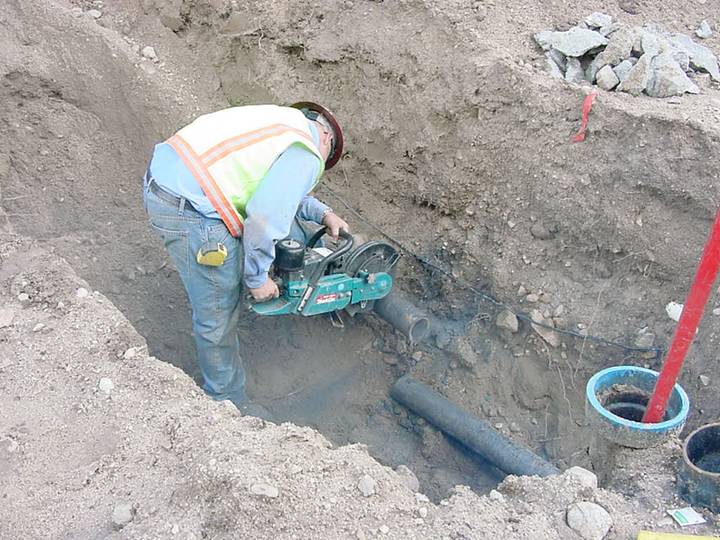

Toby Layton Cutting 4” Dia. Pipe To Install New Valve in Water Tank Line

Week 2-18-03

Extra Job Installing 4” Gate Valve in Supply Line from Tank

Extra Job Installing 4” Gate Valve in Supply Line from Tank

Jimmy Clair Painting Overhang, Cameron Cardenas Tending and Driving Lift

Steve and Toby Layton Installing Fire Sprinklers A/C Unit Removed, Roof Patched, Dried, In

In Fire Cache Building 300

Removing A/C Unit on Building 300

Removing A/C Unit on Building 300

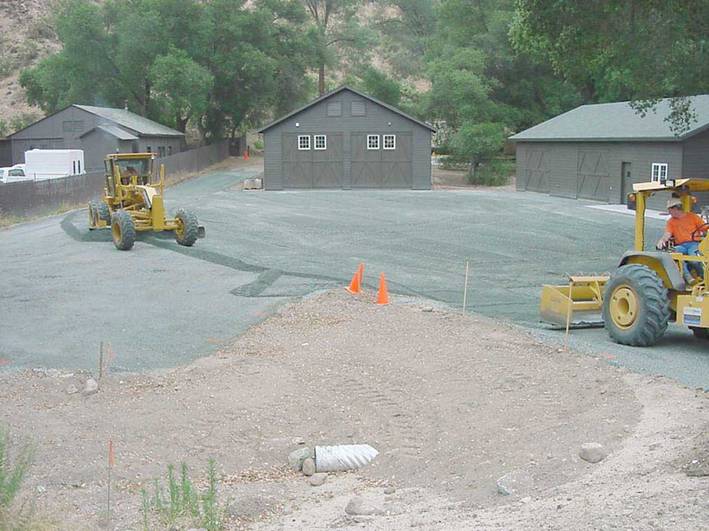

View of Project from Entrance

Week 2-20-03

Concrete Chipped To Install Termite Shield Termite Shield Installed

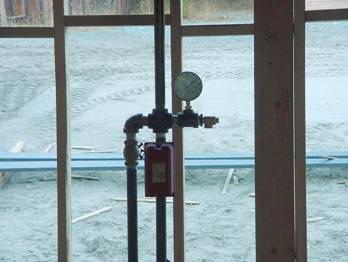

Fire Sprinkler Riser in Trails Maintenance Fire Sprinkler Riser, Fire Cache

Test Gauge, Fire Cache

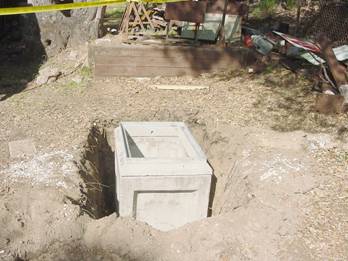

Vapor Barrier, Fire Cache Power Vault Behind Maintenance Building

Telephone Duct Behind Building 300 Telephone Duct behind Fire Cache

2-21-03

Sprinkler Test Sprinkler Riser in Trails Building

Sprinkler System in Fire Cache

Completed Repair on HVAC Roof Removal, Building 300 Vault Install Behind Building 300

Eric Freeth Installing Tar Paper on Fire Cache Robert Akerstrom Installing Tar Paper on Fire Cache

Trench to Maintenance Building

Utility Trench with Bedding Sand Behind Building 300

2-24-03

LP Gas Tee from Trail and Fire Cache, with Tracer Wire LP Riser at Fire Cache

LP Gas Riser, Trail Building, With Test Gauge Trench Line with Bedding Sand, Ready for Backfill

Trench Line with Marking Tapes 30LBS on LP Gas Line Test

Lines to Maintenance Yard Inside Power Vault, Building 300

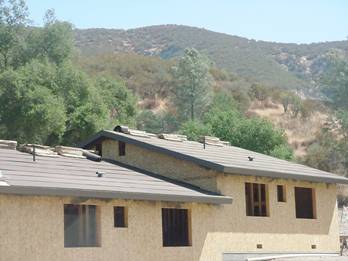

Inside Phone Vault Behind Building 300 Fire Cache Dried In

Eric Freeth Papering Trails Building

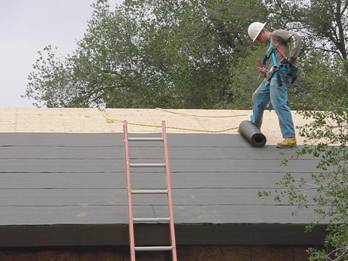

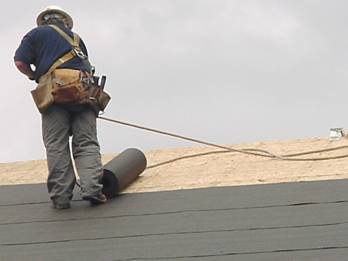

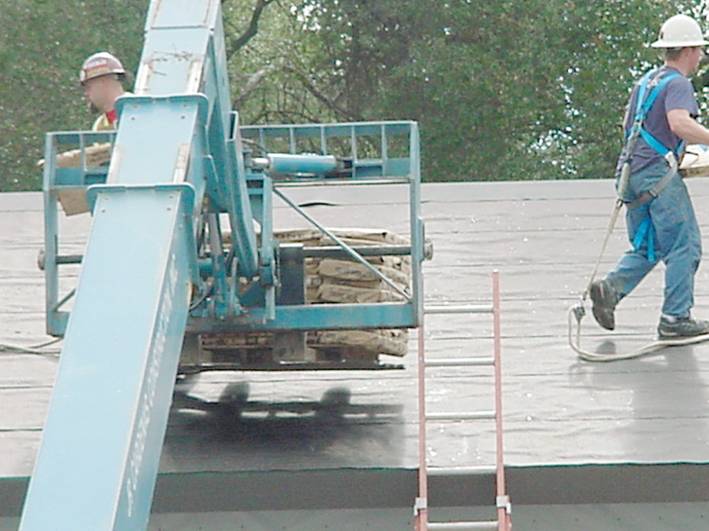

Installing Paper on Trails Roof

Evaporative Cooler Ducts in Trails Building Vapor Barrier Installed On Trails Building

Cameron Cardenas Delivering Bedding Sand to Trench Behind Building 300

2-25-03

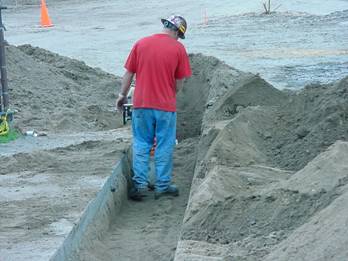

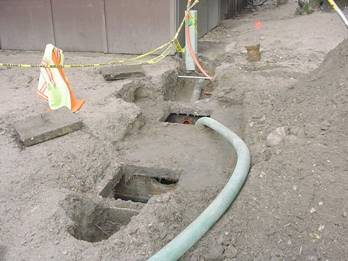

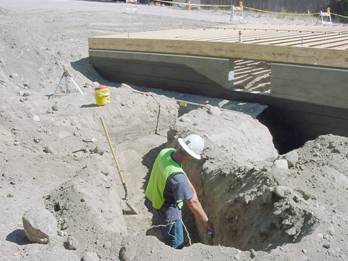

Hand-Dug Electric Trench behind Lounge Toby Layton Stocking Roof

Stocking Roof

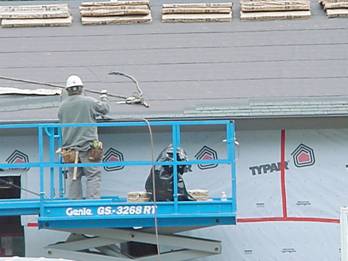

Eric Freeth Installing Flashing, Starter Strip, Hand-Trenched Line behind Maintenance Office

And First 4 Rows Of Shingles

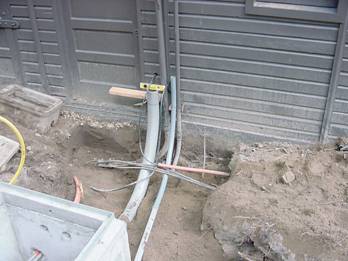

4” Telephone Line, 11/2” Electric behind Building 300 Electric And Phone Vaults Behind Building 300

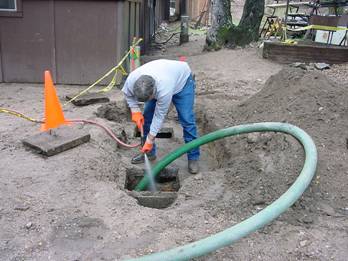

Pumping Old Septic Tank Washing Out Tank

Rinsing Tank and Final Pumping For Abandoning

2-27-03

Rinsing Old Septic Tank and Final Pump Punching Holes in Bottom after Lid Removed

Breaker Point at Work, Side View Spreading ¾ Rock in Old Tank

Rock Completed Start Backfill

Placing Sealer between Grade Rings behind Cameron Cardenas Compacting Around New

Building 300 Vaults behind Building 300

Existing Manhole with Completed Bore for Trails Building Boring Hole in Progress

3-4-03

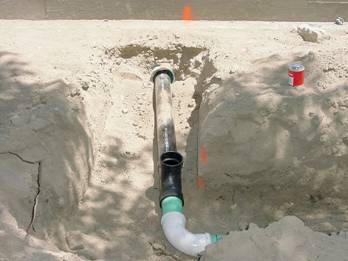

Sewer Line Installed Into Manhole to Manhole Completed Line from Trails Building

Roof of Trails in Progress Completed Grout around Metal Column in Fire Cache

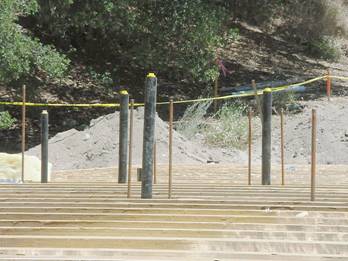

Saddle Installed On Water Main for Trails Cleaning Bored Holes for Epoxy Prior To

Installing Anchor Bolts at Mud Sill Splices

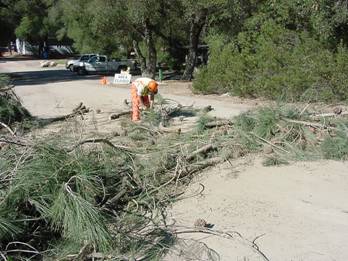

Robert Anderson Removing Limbs from Large Branches

Picking up Logs with the 446 Cat Backhoe 100’ Pine, 80’ Boom Lift, Jimmy Clair and Cameron

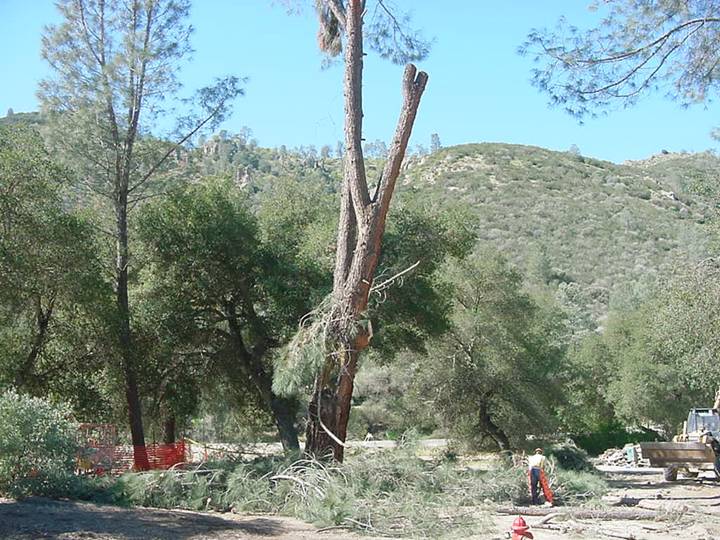

Cardenas Topping Tree. Note: Backhoe Size

Robert Akerstrom Removing Brush from Logs

3-6-03

Tony from Tognetti’s Electric Working on Completed Trails Fire Sprinkler Riser

Trails Sub Panel

Evap Cooler Duct Work in Trails Building Eric Freeth Roofing Back Side of Fire Cache

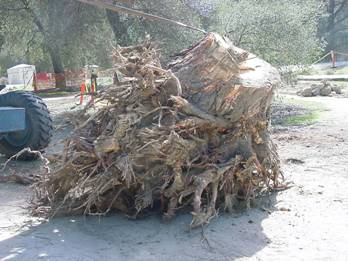

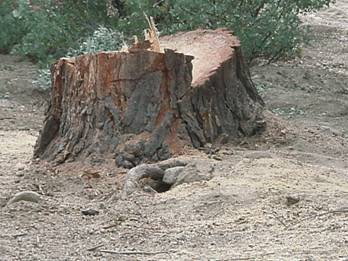

36” Diameter Stump from 100’ Tall Pine Log Pile

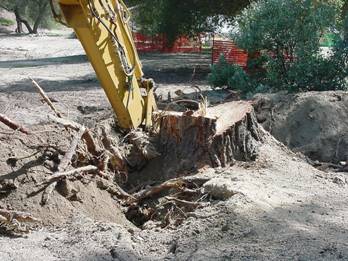

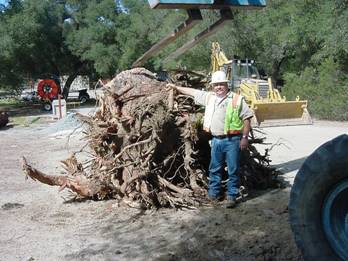

Digging Out Stump Jimmy Clair Proud Of His Roots!

Had To Use Gradall to Remove Roots from Here Hole With Stump Removed,

Ready to Clean Out Roots

3-10-03

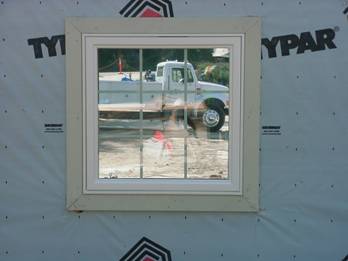

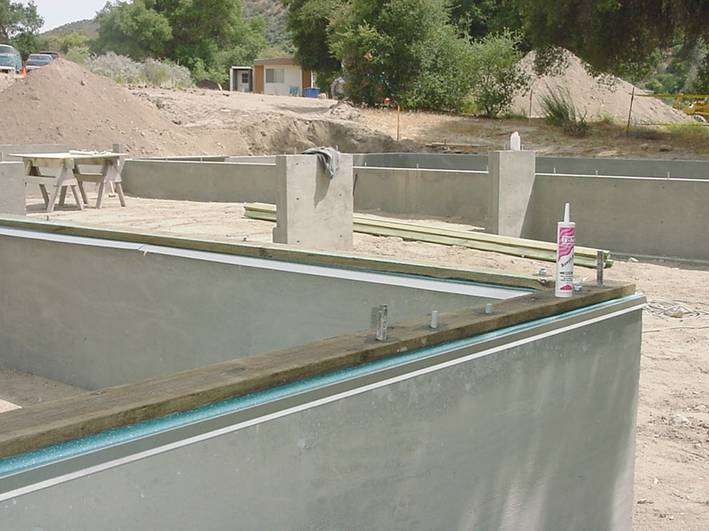

International, Looking Through Rear Window Seal Installed On Bottom of Manhole by Lounge

Of Fire Cache

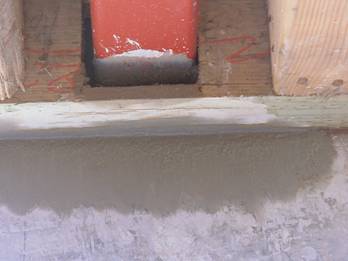

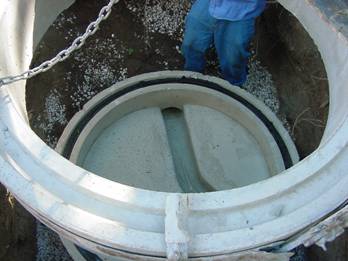

Grout Used To Insure Seal Cameron Cardenas, Toby Layton Installing

Grade Ring with Sealer

6” Sewer Line From New Manhole across Completed Manhole by Employee Lounge

Maintenance Yard

Looking Across Maintenance Yard Toby Layton Compacting Sewer Line

From New Manhole

Siding Being Installed On Back of Fire Cache Shoring Box Used For Sewer. We Stepped the Trench

Later So We did Not Have to Use It.

3-18-03

Manhole Water Tested Completed Manhole

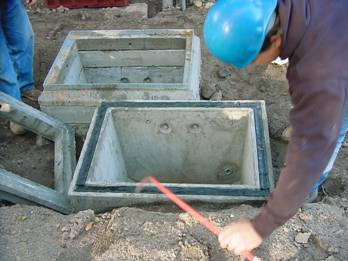

Installing Grout for Grade Ring 2^nd Manhole, Dorm Duplex

Grouting For Ring

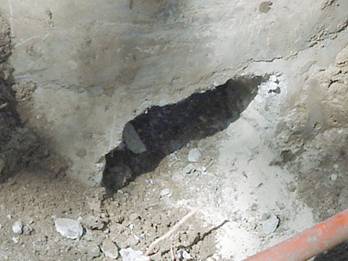

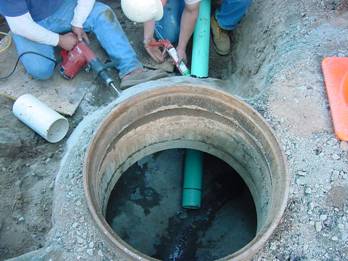

Hook-up Hole in Existing Manhole 6” Line Installed In Existing Manhole

Behind Comfort Station

Ready to Seal New Penetration Cameron Cardenas Backfilling New Sewer Line

from Dorm Duplex

3-26-03

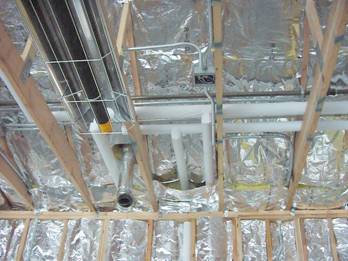

Sewer Trench to Dorm Duplex Completed, Utilities in Trails Ceiling

Groomed Back to Nature

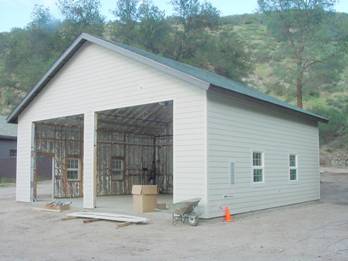

Finished Siding on Fire Cache Robert Akerstrom and Cameron Cardenas

Installing Siding on Trails Building

Trails Building Front Door Hung with Trim Eric Freeth Installing Man Door on Fire Cache

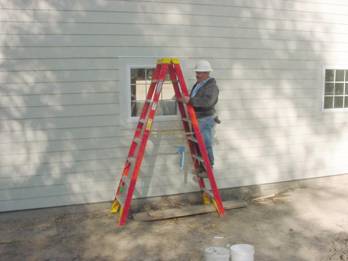

Trails Building with Completed Siding Jimmy Clair Caulking Fire Cache Siding

Eric Freeth Installing Wainscot in Fire Cache Steve Lewis Installing Interior Door Frame

4-10-03

Robert Kramer of Apple Valley Communications Jimmy Clair Caulking Wainscot in Fire Cache

Working on Alarm System

Eric Freeth Hanging Drywall Last Board to Hang In Trails Building

Sealed Green Board in Restroom Jimmy Clair Painting Back Of Fire Cache

John Simons Installing First Coat of Drywall Mud Joints Taped In Trails Building

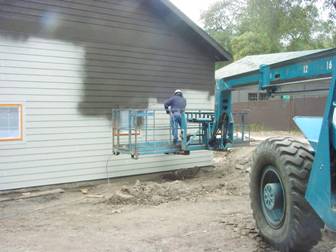

View from Levee Road Jimmy Clair Continuing To Paint Rear of Fire Cache

4-14-03

Eric Freeth Building Door Frames Cameron Cardenas Cutting, Painting on Wainscot

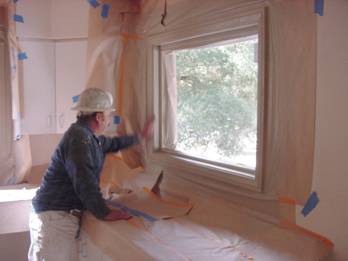

Plastic Installed Over Doors Help Dry Mud Installing Tongue and Groove on Garage Doors

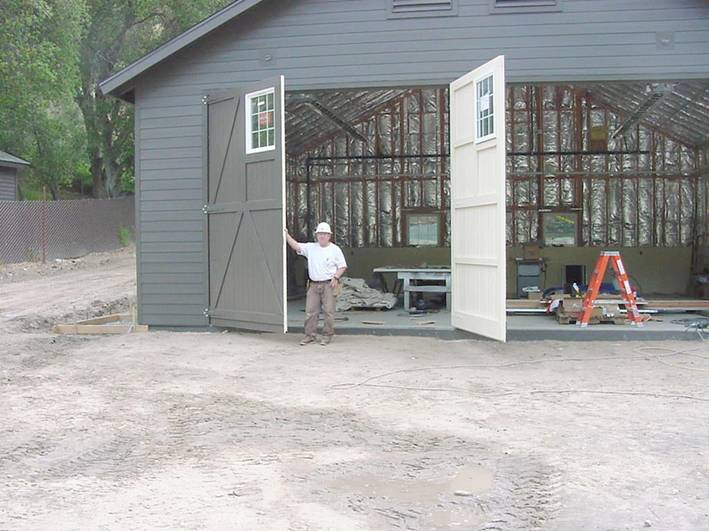

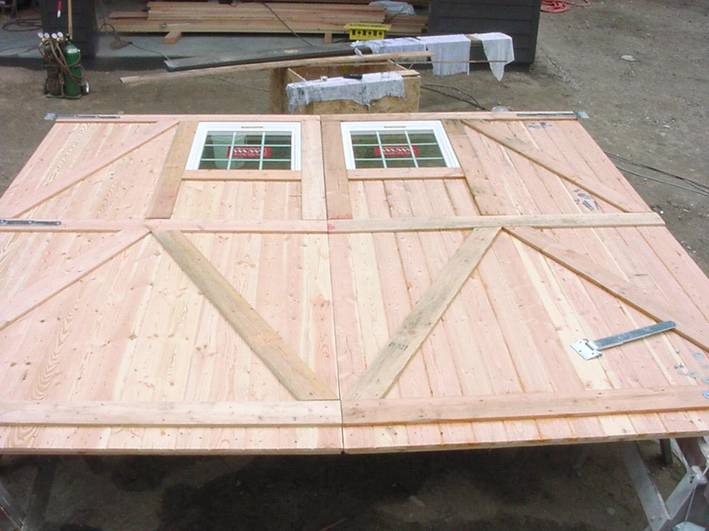

Garage Door Tongue And Groove Installation Completed Door

Installing Hinged, Doors Paired Up

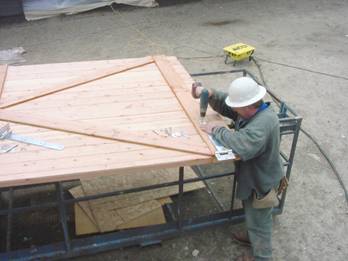

Eric Freeth Installing Hinges Doors Being Fabricated In Fire Cache

4-22-03

Nicholson Patching Trench Line in Maintenance Yard Final Rolling Of Patch

Removing Asphalt on Road Next To Fire Cache Jimmy Clair Painting Interior of Trails Building

Painting Door Trim Jimmy Clair Painting Shop Doors

Installing First Pair of Doors on Fire Cache Fire Cache Stoop Ready to Pour

Eric Freeth With First Set of Completed Doors

5-1-03

Fire Cache Stoop Poured FAU Behind Building 300 Poured

R/A & Feed Holes Cut In Building

Eric Freeth Finishing First Sidewalk Pour on Trails Sidewalk Return around Rear of Trails Building

Jimmy Clair Installing Back Rod and Formed Sidewalk In Front Of Trails.

Polyurethane on Fire Cache Windows Base Being Installed

Robert Akerstrom Grooming Around Tree Front Sidewalk Ready for Wire Mesh

Cameron Cardenas Finishing Front Sidewalk

5-8-03

Relocation of 6” Gate Valve on Feed to Park

Relocation of 6” Gate Valve on Feed to Park

Trench Line of Rerouted 2” Conduit to Pump House Rob Hill Doing CTE Compaction Test on Dorm Pad

Completed Dorm Pad Jimmy Clair & Cameron Cardenas Applying

First Coating to Trails Building Floor

5-21-03

Trenching For Duplex Footing, Jimmy Clair on Hoe, Robert Akerstrom on Shovel

Nicholson Engineering Compacting Entrance Eric Freeth and Cameron Cardenas Forming Duplex

Upper Area Trenched On Dorm Robert Akerstrom Checking Grade On

Footing At Lower Area of Dorm

Kurt Lanning from Nicholson Engineering Grading Entrance to Housing

6-3-03

Cameron Cardenas Forming Duplex New Culvert under Entrance

Bottom Rebar Ties Ready for Dobbies Robert Akerstrom Grooming Dorm Footing

FINE TRUCKS! Nicholson Grading Base in Trails Parking Lot

6-4-03

Beginning To Remove Old Float Control Valve Robert Akerstrom Harnessed and Entering Tank

To Undo Bottom Bolts On Valve

Robert Akerstrom Entering Tank Valve Removed

New Valve Completed Steel Work Completed In Duplex Footings

24” Spacing on Duplex Uprights 20” Wide Footing on Duplex

Final Grade Base in Parking Lot

6-5-03

First Truck for Base of Footers Coordinator Herb Wosencroft Watching

Start of Footing Pour

Setting Column Base Eric Freeth Finishing Top of Footing

CTE Tech Checking Slump and Cylinders Cameron Cardenas Finishing Duplex Footing

Cameron Cardenas Completing Duplex Footing Cutting Keyway into Top of Footings

Keyway Cut Into Top Of Footing Pour On Footing Complete. Eric Freeth And

Cameron Cardenas Finishing Last Of Footings

6-9-03

Dorm Pad With Footer Trenched Al Plaxton’s Crew Getting Ready with Forms

Inside Plywood Panels Being Installed On Duplex

Duplex, Looking East Outside Forms Installed On Dorm

Installing Steel Uprights on Dorm at 24” O.C. Ready To Pump Duplex Walls

Cameron Cardenas Doing Final Prep For Pour on Duplex Duplex, Looking West

6-17-03

C & C Concrete Pumping Set-up Al and Eddy Plaxton Help Finish Stem Walls

Eric Freeth Finishing Stem Walls on Duplex Mike Cardenas Guiding Hose,

Robert Akerstrom Running Vibrator

Center Piers on Duplex Poured and Stirrups Set Setting Up To Pour Dorm

Preparing To Pour Dorm Al Plaxton Running Hose

Finishing Top of Dorm Stem Wall First Pass of Concrete around Dorm

Upper Level of Dorm with Stem Wall Floated Troweling Dorm Stem Wall

Al Plaxton Filling Piers on Dorm Mike Cardenas Assisting In The

Finishing Of Stem Walls

Front of Dorm Stem Walls Stripped East Side of Dorm Stem Wall

Garage Openings on Duplex

Looking East on Back Side of Duplex

6-18-03

Skid Steer on Ramp, Used To Skid Steer at Work

Drive Unit into Complex

Filling and Compacting Duplex Front Porch Area Skid Steer Moving Dirt inside Duplex

Dave Moore Compacting and Robert Akerstrom Two Stem Walls Finished Inside Duplex

Spreading Dirt inside Duplex

Inside View of Dorm Stem Walls before Backfilling and Compaction

Looking At East Side of Dorm Stem Wall

6-19-03

Backfilling Inside of Dorm Walls

Working on 2^nd Level, Dorm Completed Inside Stem Walls, Duplex

Over-all View of Work on Dorm Backfilling Dave Moore Leveling Fill, Dorm

Eric Freeth And R. Akerstrom Dorm Fill ½ Done

Installing Termite Shield

Over-all View of Duplex Showing Completed Concrete, Beginning of Framing

6-23-03

Duplex Foundation with Termite Shield, Sill Sealer, and Sill Plate Installed

Sub Floor Beams Installed On Duplex Robert Akerstrom Sealing around Anchor Bolts

Eric Freeth Installing Sill Sealer Cameron Caedenas and Dave Moore

Bedding Duplex Sewer Pipe

Center Connection of Duplex Sewer Duplex Sewer Line Passing Through

Sleeve in Foundation

Dave Moore and Jimmy Clair 3 Sewer Clean-outs In Front of Duplex

Trenching To Manhole

3,200 LBS of Stump Being Hauled Away From Site

6-25-03

Eric Freeth and R. Akerstrom Working on Dorm’s Sub Floor Beam

Completed Sewer Lines On Duplex. Eric Freeth Inspecting Sub Floor Work

Lumber Delivered For Dorm and Duplex Jimmy Clair and Dave Moore Coating

Duplex Walls with Damp- Proofing

Back Duplex Wall Coated. Note Dirt Pile! 4” Water Main to Dorm

Dave Moore Compacting Entrance Completed Sub Floor Joist On Duplex

To Duplex Garages

Installing Sub Floor Joist on Dorm. Damp-Proofing Completed

7-8-03

Robert Akerstrom Working on Cameron Cardenas Installing 4” Water

Sewer Line from Dorm Main behind Duplex

Mike Cardenas Moving Dirt for Sewer Line

Sewer Line from Dorm Dorm Line into Manhole

Dorm Sewer Line

Backfilled Clean-out By Dorm Kitchen Dorm Clean-out, Upper Level

7-14-03

Dave Moore Compacting Fill Next To Dorm Sheeting Duplex, Floor Insulation Installed

Plumbing Installed On Duplex Subfloor Double Check-Valve Water Meter,

Curb Stop behind Duplex

Meters Hooked Up To Water Main with 1” Saddle Cameron Cardenas Sheeting

Upper-Level Dormitory Floor

Lower Dormitory Subfloor Insulated J & E Mechanical Fabricating Continuous Rain

Gutters for Fire Cache & Maintenance Buildings

Installing Rain Gutters on Fire Cache (J & E Mechanical)

7-29-03

Nickleson Engineering Grading Around Duplex Completed Backfill around Handicap on Duplex

Cutting Swale around Side of Duplex Upper Rooms Framed On Dorm

Cameron Cardenas Completing Sheeting Dave Moore and Robert Akerstrom

On Lower Level of Dormitory Framing Upper-Level Walls

Rear of Duplex Walls with Shear Panel Swale Cut on East Corner of Duplex

1 ¼” Water Meter and Curb Stop to Dormitory 2 ½” Electrical Ducts to Vault Behind Duplex

8-7-03

LP Gas Line and Phone Conduit from Dorm LP Gads Line and Phone Line

Going Around Electrical Box

Marking Tape Installed In Utility Trench Electrical Ducts Terminated Behind Trailer Spaces

Trusses Loaded On Front of Dorm Conduits Terminated Behind Duplex

Electrical and Gas Lines Being Readied LP Line with Tracer Wire Installed Behind Dorm

For Installation, Eastern Duplex

Trusses Installed On Dorm

8-14-03

Robert Akerstrom Installing Grout Electric Vault Housing with Future

Between Top Ring and Vault Dorm Line and 2 Stubs Out

Cameron Cardenas Working On Dorm Overhang Cameron Nailing Off Shear Panel

on Gable Truss for Duplex

Looking At Back Of Duplex, East Gable Stood Completed Framing, Viewed From Rear of Dorm

Eric Freeth and Cameron Cardenas Installing First Run of Plywood on Back of Duplex

Front of Duplex Trusses Stood Looking at Dorm from Level Road

8-27-03

Fire Sprinkler System at 210 PSI Duplex Riser Holding at 210 PSI

Dorm Riser at 210 PSI

9-3-03

BCS Mechanical Installing Duct in Duplex Dorm Roof Dried In and Stocked

Tony (Tognetti’s Electrical) Wiring Kitchen in Dorm Duplex Entrance on the H/C Unit

Dave Moore Drying In Duplex Cameron and Eric Framing Drops In Kitchen

Switch Gear Pad behind Duplex Ready for Pour LP Pad Ready to Pour

9-8-03

Future Dorm 2 1/2” Line Installed

Future Dorm 2 1/2” Line Installed

Looking at West Side of Dorm

Looking Along East Side of Dorm Duplex Entry Ready for Base

9-9-03

Installing Base Duplex Apron Forms Set Base Install, Duplex Entrance

Installing Base, H/C Duplex Entrance Dave Moore Installing Window Trim

Working on Dorm Window Trim Al Plaxton Showing Us His Stoop

Duplex Rear Stoop Poured Installing Base Dorm Patio

Garage and Apron Poured on Duplex

Cameron Cardenas Running Eave Metal and First 5 Rows of Shingles from Man Basket

11-5-03

Zzzzzzzz Western Cabinets and Counters,

Working on Dorm Kitchen

Headquarters Kitchen Cabinets completed Tony from Tognetti Electric

Ready to Pull Wire in Vault

Spools of Wire for Underground Jambs and Casings Masked Off

Ready For Painting of 2^nd Color

Duplex 2 Kitchen Cabinets Jimmy Clair Standing Window Casing in Duplex

Tognetti Electric Installing New Switch Gear for Maintenance Yard,

JRCCI Gradal Being Used

11-20-03

Floor Store Installing Vinyl Dave McKibbin Installing Sink in 2^nd Duplex

In Headquarters Kitchen Unit

Marta Cardenas Sanding 2^nd Coat in Dorm Cameron Cardenas Standing Casing in Dorm

Forrest Anderson Standing Jamb, Second Coat Jimmy Clair Painting In Dorm

Access Grill Installed On Dorm, Front Dorm Windows Masked Off

JRCCI Fabricated

Looking Down Side of Dorm, Dorm Kitchen Cabinets Being Installed

Windows Masked Off
